3-12
1. Open the top panel. (See page 3-1)
2. Remove the coin box.
3. Remove the front panel. (See page 3-39)
4. Use a small flat blade screwdriver to release
the coin sensor wires from the connections
at the back of the coin vault.
5. Remove the coin vault switch.
(See page 3-11)
6. Mark the coin drop connector wire colors
and order them for proper reinstallation.
NOTE: The colors and order of wires are
Red, Blue, Green, and Green, from the
inside to outside of washer. Green wires are
marked 1 and A1 from inside to outside of
washer.
7. Remove the wire connectors from the coin
drop connector terminals.
8. Remove two T-20 screws that secure the
top edge of the coin vault to the chemical
dispenser support.
NOTE: These are self tapping screws with
molded on washers.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.

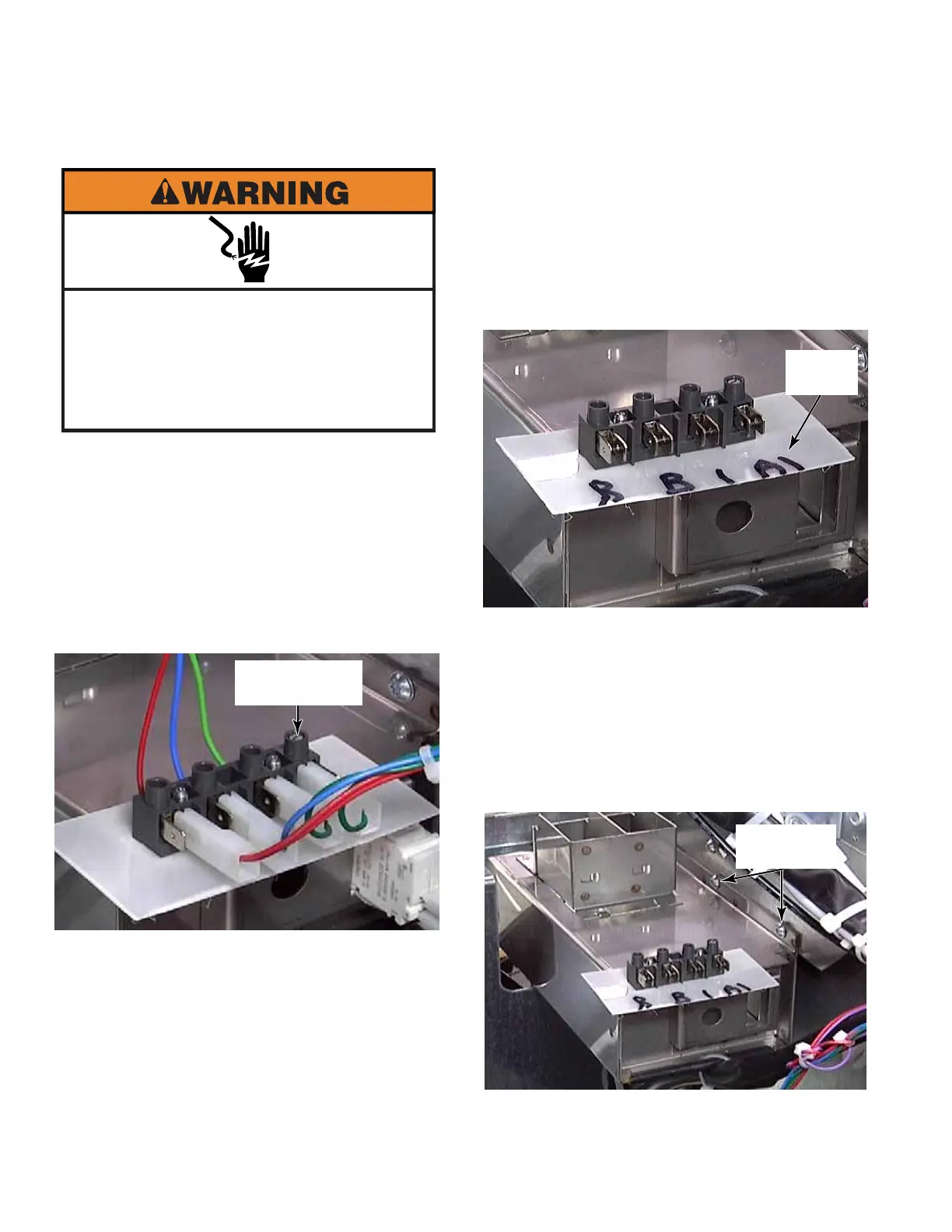

COIN VAULT - PD MODELS
Wire Release
Screw
Wire
Colors
Two T-20
Screws
To Next Page
