3-25
1. Open the top panel. (See page 3-1)
2. To remove a 3 or 4-way inlet valve coil, pull
the wire connectors off. These connectors
are not polarity specific.
3. If removing more than one valve or coil at a
time, mark the valves, hoses and wires for
proper reinstallation.
4. Use a flat blade screwdriver to pry up under
the metal frame of the coil.
5. Pull the coil up off the valve stem.
6. To remove the valve stem, use a pair of
needle nose pliers, or a valve core tool, to
unscrew valve stem from the valve body.
7. The diaphragm can now be inspected or
replaced.
8. Inspect the valve seat for wear or debris.
Replace or clean as necessary.
TECH TIP: To determine which water valve
is currently energized, use a steel shaft flat
blade screwdriver. Move the screwdriver
near the top of each valve individually. The
valve that has a magnetic attraction to the
screwdriver is the valve that is currently
energized.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.

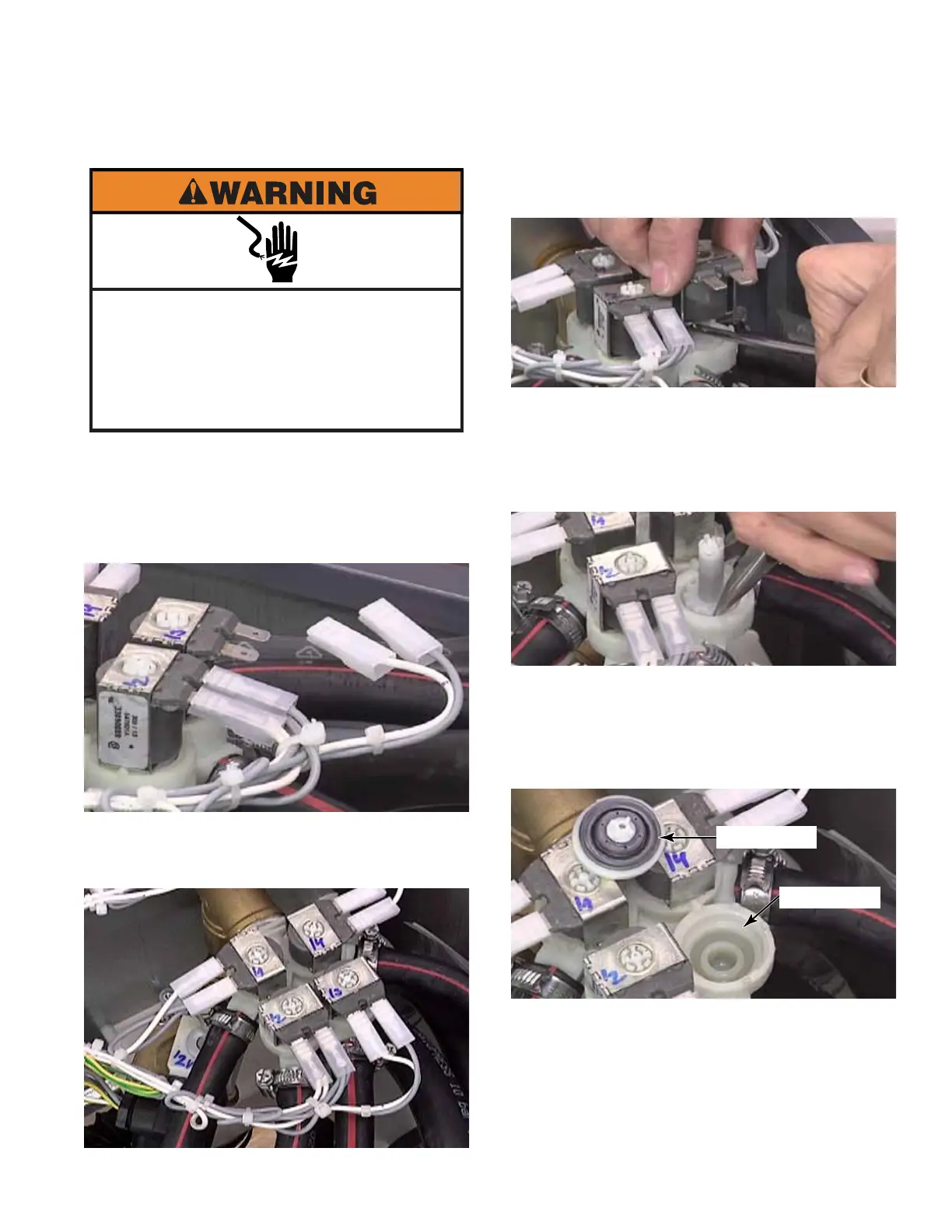

WATER INLET VALVE SOLENOIDS - ALL MODELS
Diaphragm
Valve Seat
To Next Page
