Maytag MXR Series User Manual

3-5

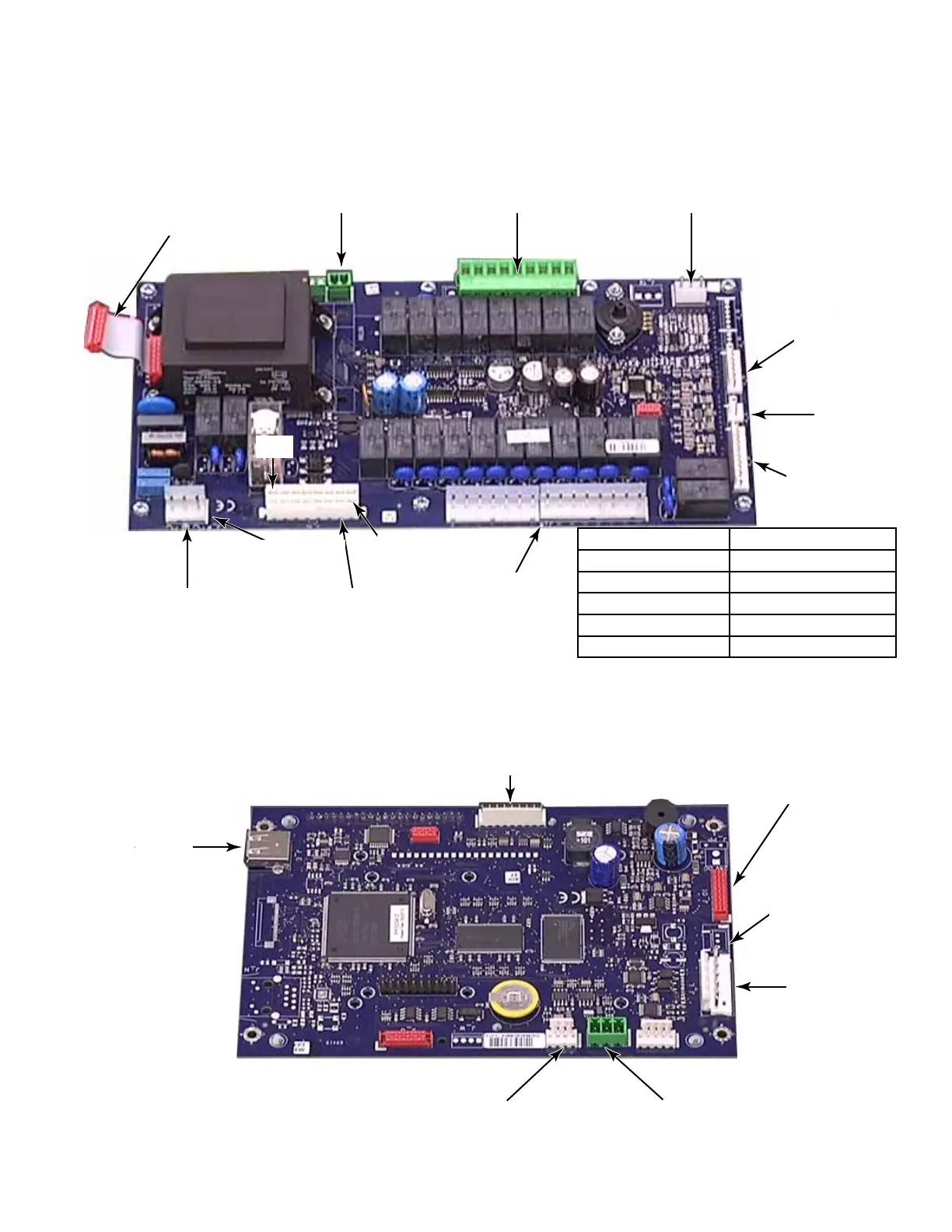

MC-7 CONTROL BOARD CONNECTIONS
Power In
J_P
Door Lock
J_DL
Component
Outputs
J_R
Display Board
Ribbon Connector
J_02
Temperature Sensor
J_T1
Coin Drop &
Vault Switch
J_A
Rotation
Sensor
J_E
Recycling
J_B
DISPLAY BOARD CONNECTIONS
USB
J_L
Control Board
Ribbon Connector
J_01
Card Reader
J_L
RJ45 CAT Cable
J_C
Inverter
J_F
User Interface
Ribbon Connector
J_K
Display Power
Source
24VAC (100mA)
J_M
Chemical Signals
J_Q
Pin 1 Noted With
White Line
DL1
DL16
R2 Drain Valve 2 R10 Cold Water Hopper 4
R5 Contactor R11 Hot Water Hopper 1
R6 Heating R12 Hot Water Hopper 2
R7 Cold Water Hopper 1 R13 Cold Water Direct
R8 Cold Water Hopper 2 R14 Hot Water Direct
R9 Cold Water Hopper 3 R15 Drain Valve 1
