3-10

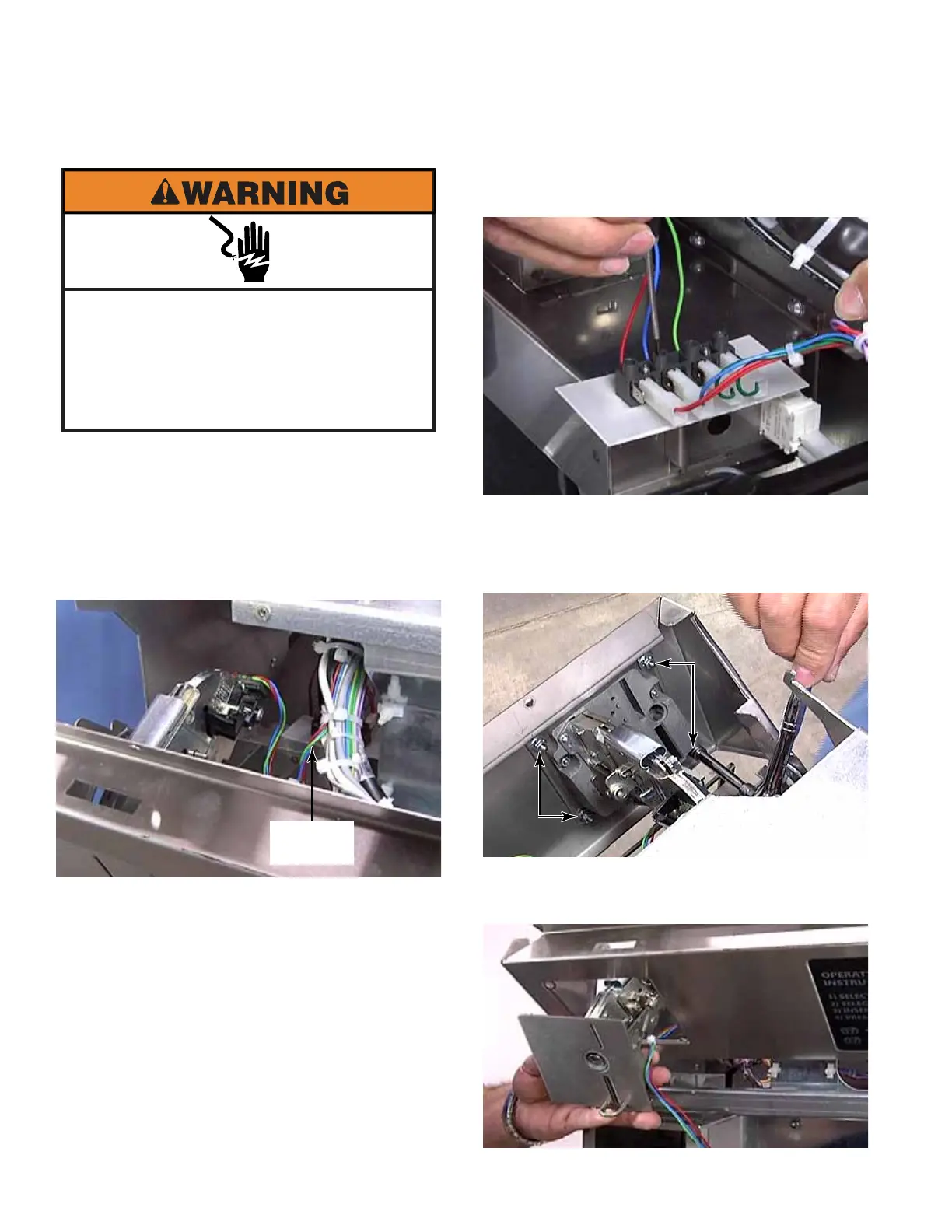

1. Open the control panel. (See page 3-2)
2. Clip the wire ties that secure the coin drop
sensor wires.
TECH TIP: Make sure that all removed wire
ties are replaced during reassembly.
3. Attached to the top back edge of the coin
vault are the coin drop sensor connections
to the control board. These connections can
accommodate a single or multi-coin drop.
4. Use a small flat blade screwdriver to release
the coin sensor wires.
5. Remove four 7mm hex head nuts, with flat
and star washers, that secure the coin drop
to the inside of the control panel.
6. Support the coin drop and remove it from
the front of the control panel.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
COIN DROP AND COIN SENSOR - PD MODELS
Sensor
Wires
To Next Page
