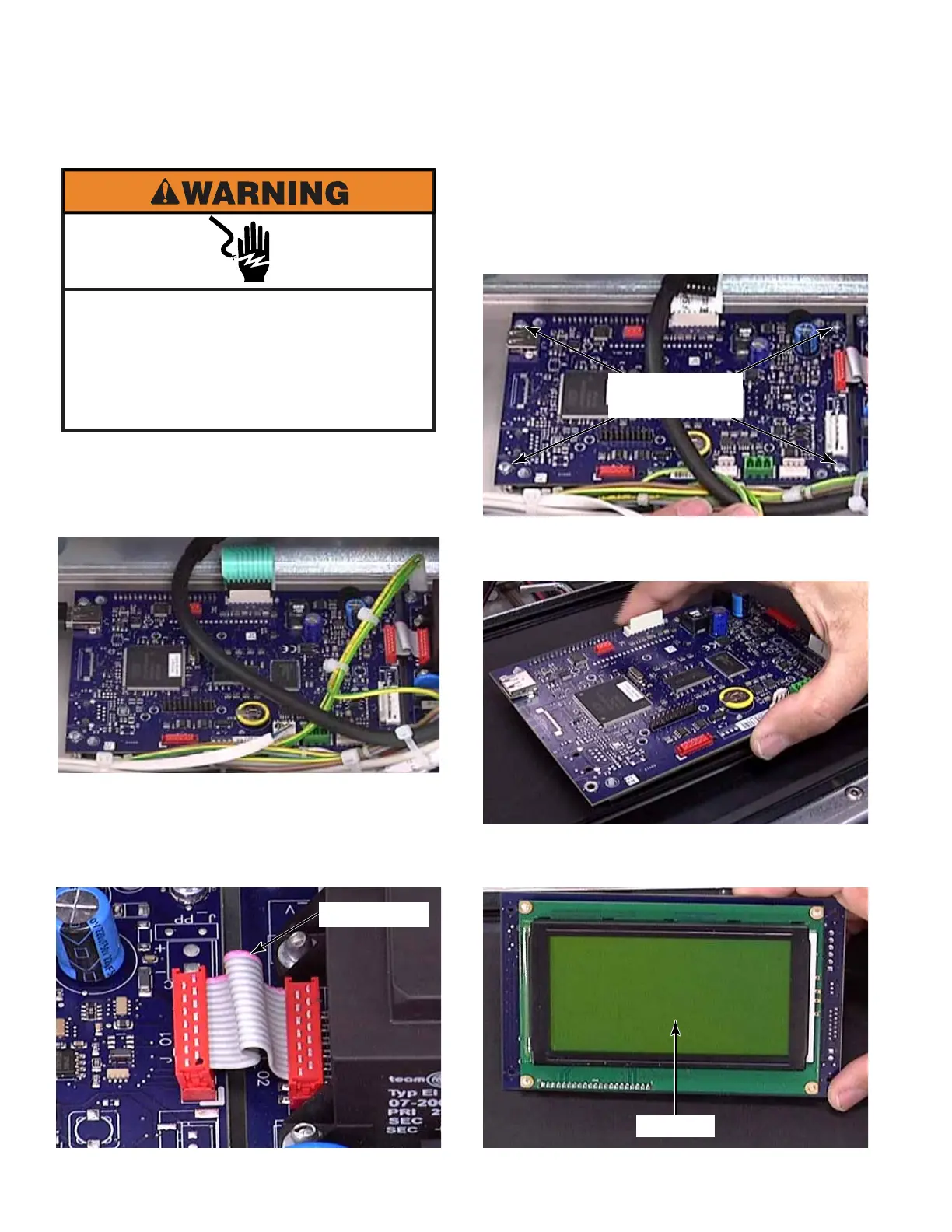

3-6
1. Open the control panel. (See page 3-2)
2. Disconnect the wire connectors from the
display board.
3. Disconnect the jumper ribbon cable that
connects to the main control board. When
reconnecting the jumper ribbon cable, make
sure the red edge, on the ribbon, faces the
back of the control board.
4. Remove four #1 Phillips screws that secure
the display board to the control panel.
NOTE: This is an MC-7 control.
5. Lift the display board out of the control
panel. Hold the board by its edges only.
6. The display board has the display attached
to the front side of the control.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
DISPLAY BOARD
Red Edge
Four #1 Phillips
Screws
Display
To Next Page
