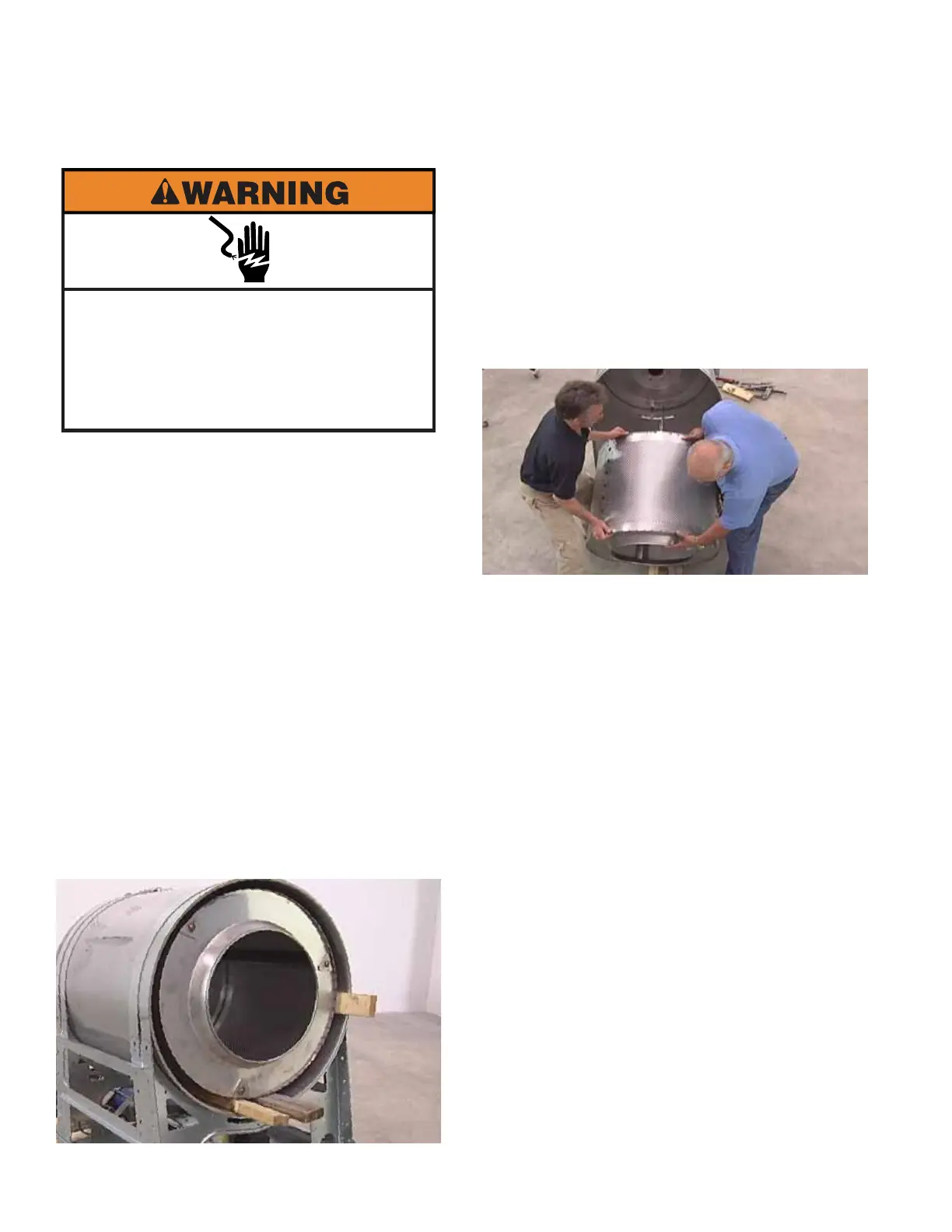

3-62
1. Remove the front panel. (See page 3-39)
2. Remove the door. (See page 3-38)
3. Remove the front plate. (See page 3-41)
4. Remove the door support front plate.
(See page 3-44)
5. Remove tub front cover. (See page 3-45)
6. Wedge a 2 x 4 between the basket and
outer tub to keep the basket from turning.
7. Place a couple 2 x 4s under the basket to
support the basket during removal.
NOTE: 2 x 4s need to be inserted so they
avoid the electric element receiver brackets
at the bottom rear of outer tub.
8. Remove the back panel. (See page 3-46)
9. Remove the basket pulley. (See page 3-59)
10. Remove the bearing house.
(See page 3-60)
11. Using two people, pull the basket out of
the outer tub and set it on its front.
12. The shaft is attached to back of basket.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
BASKET
To Next Page
