3-70
1. To reinstall the basket pulley on the shaft,
when the basket was not removed, align the
key with the slot in the shaft.
2. Reinstall the center bolt and washer.
3. Block the pulley to the basket and tighten
center bolt, pressing pulley onto the shaft.
4. Reinstall the rotation sensor.
5. Adjust the sensor so the plate passes within
approximately 1/16th of an inch of the
sensor.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.

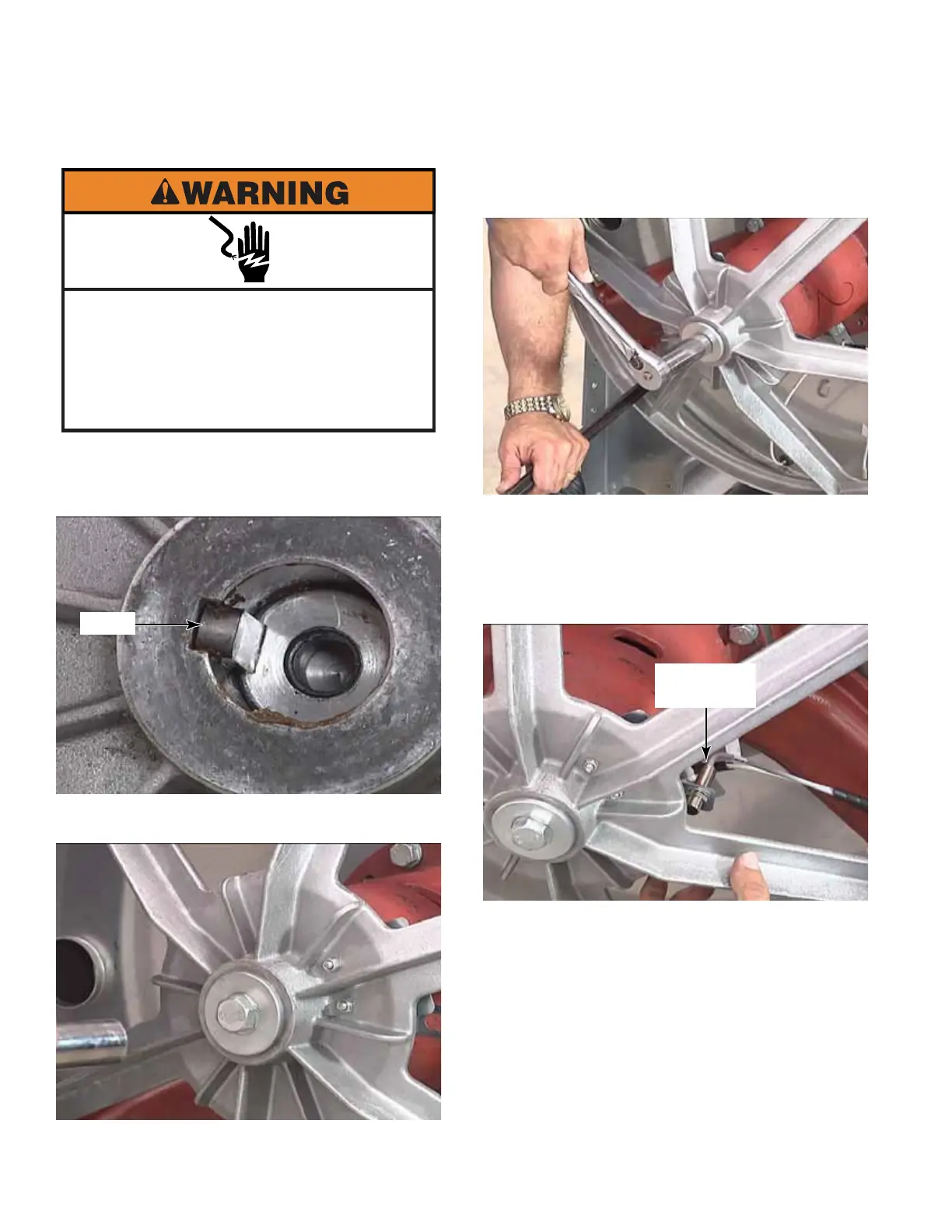

BASKET PULLEY REINSTALL
Key
Rotation
Sensor
To Next Page
