3-53

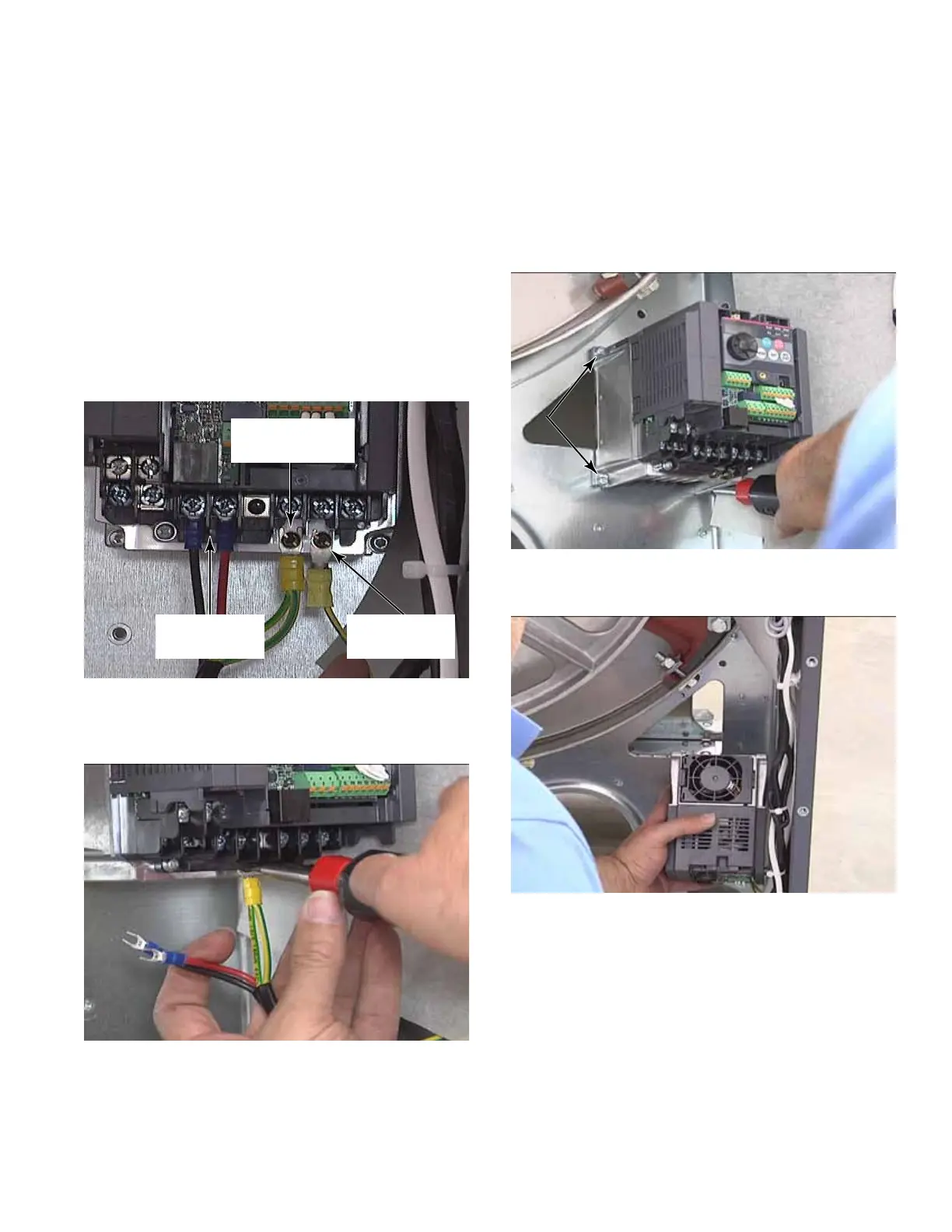

13. Support the inverter while removing the
two Phillips screws that secure the top
corners of the inverter heat sink. These
screws have a lock washer and a flat
washer on them.
14. Lift inverter and heat sink up, off bottom
two screws, and remove it from the washer.
8. Use a flat blade or Phillips screwdriver to
loosen the screws on contacts U, V and W.
Pull the drive motor wire connectors down
to remove them.
9. Loosen the ground wire screw and pull the
connector down to remove it.
10. Loosen the screws that secure the red and
black power wires to the inverter. Pull the
wires down to remove them.
11. Loosen the screw securing the two ground
wires to the inverter. Pull the wires down to
remove them.
12. Loosen the two Phillips screws that secure
the bottom corners of the inverter heat sink.
Inverter
Power Wires
Inverter
Ground Wires
Drive Motor
Ground Wire
To Next Page
