4-3
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.

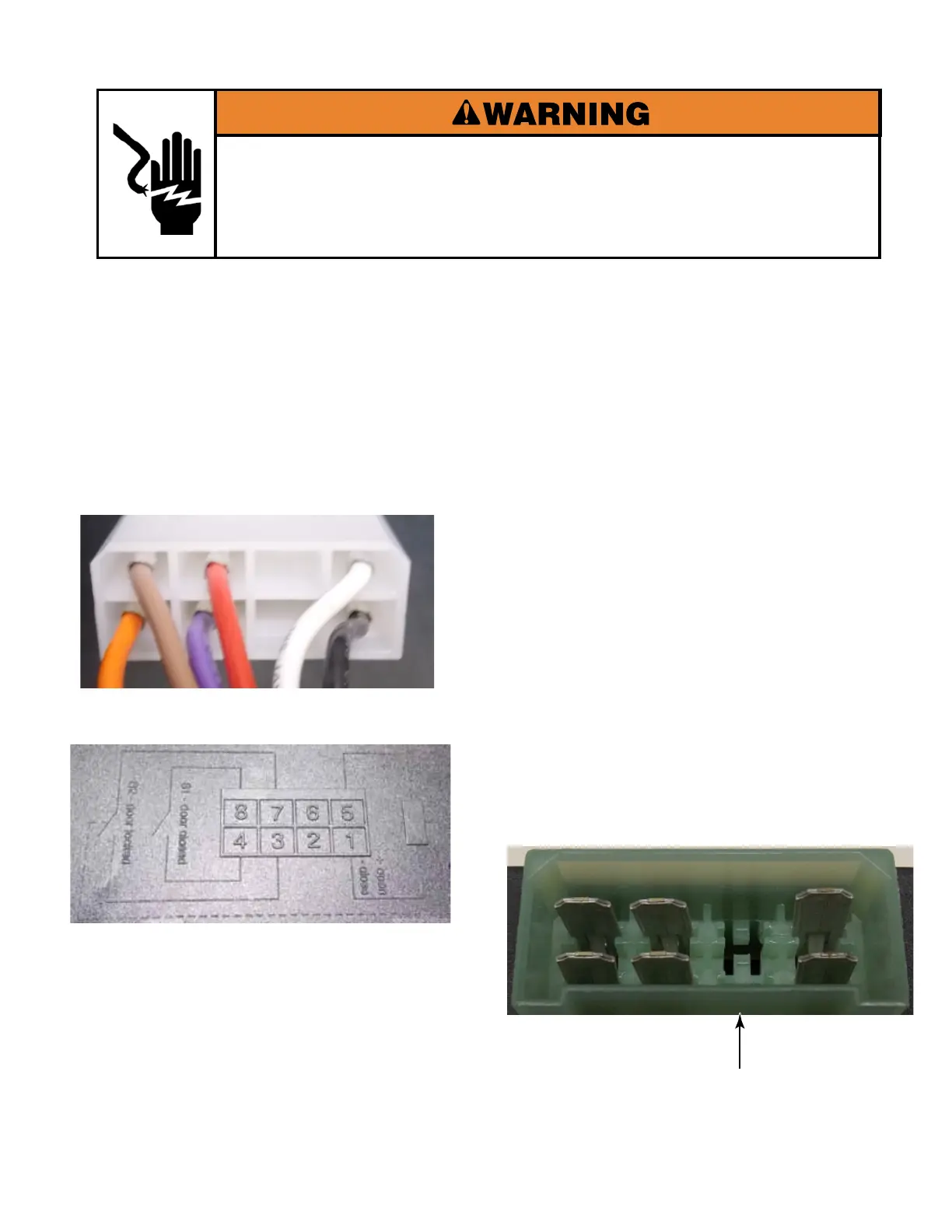

DOOR LOCK COMPONENT TESTING
FROM DOOR LOCK & HARNESS PLUG
4-3
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
DOOR lOCk COMPONeNT TeSTiNG
FROM DOOR lOCk & HaRNeSS PluG
7-3
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
TeSTinG DOOR lOCk COMpOnenTS FROM
DOOR lOCk & HaRneSS pluG
To check Door Lock Components
from the plug:
Leave the door lock wire harness
connector on the door lock assembly.
To test the Door Lock Solenoid Coil:
Touch one test lead to pin #1.
Touch other test lead to pin #5.
The meter should indicate 2.9K - 3.1K Ω.
To test the Door Locked Switch:
Touch one test lead to pin #7.
Touch other test lead to pin #3.
With the door closed or locked, the meter
should indicate continuity (0 Ω)
With the door open, the meter should indicate
open circuit (infinite Ω).
Pin 4
Pin 3 Pin 1
Pin 8
Pin 7
Pin 5
To test the Door Closed Switch:
Touch one test lead to pin #4.
Touch other test lead to pin #8.
Pin 5
Pin 7
Pin 8
Pin 1
Pin 3
Pin 4
To test the Door Components
from the Lock mechanism,
unplug the harness and follow
Testing Door Lock Switches:
same test procedures.
Door Lock
Connection
