Mazda 6 2009 - Rear Fender Rain Rail and Corner Plate Removal [Panel Replacement]; Symbol Mark; Removal Procedure

BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–75
09-80B
REAR FENDER RAIN RAIL AND CORNER PLATE REMOVAL [PANEL REPLACEMENT]
id098008611900
Symbol Mark
Removal Procedure

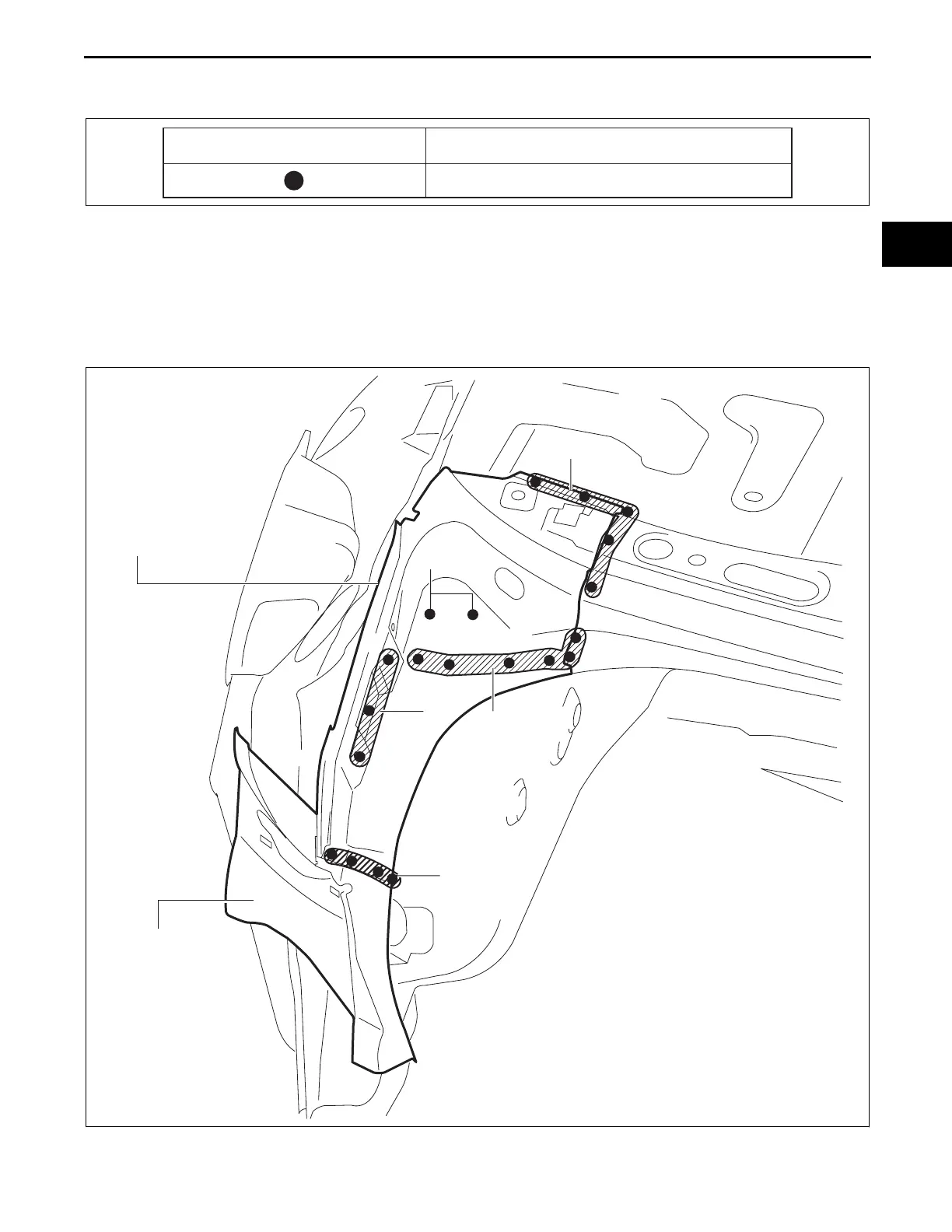

1. Drill the 17 locations indicated by (A) shown in the figure.
Note
x When removing the rear fender rain rail and the corner plate separately, drill the 4 locations indicated by
(B).
2. Remove the rear fender rain rail and corner plate.
End Of Sie
SYMBOL MARK
MEANING
SPOT WELDING
am6xub0000007
REAR FENDER
RAIN RAIL
CORNER PLATE
(B) 4
(A) 6
(A) 6
(A) 2
(A) 3
am6xub0000007
