BODY STRUCTURE [DIMENSIONS]
09-80D–10

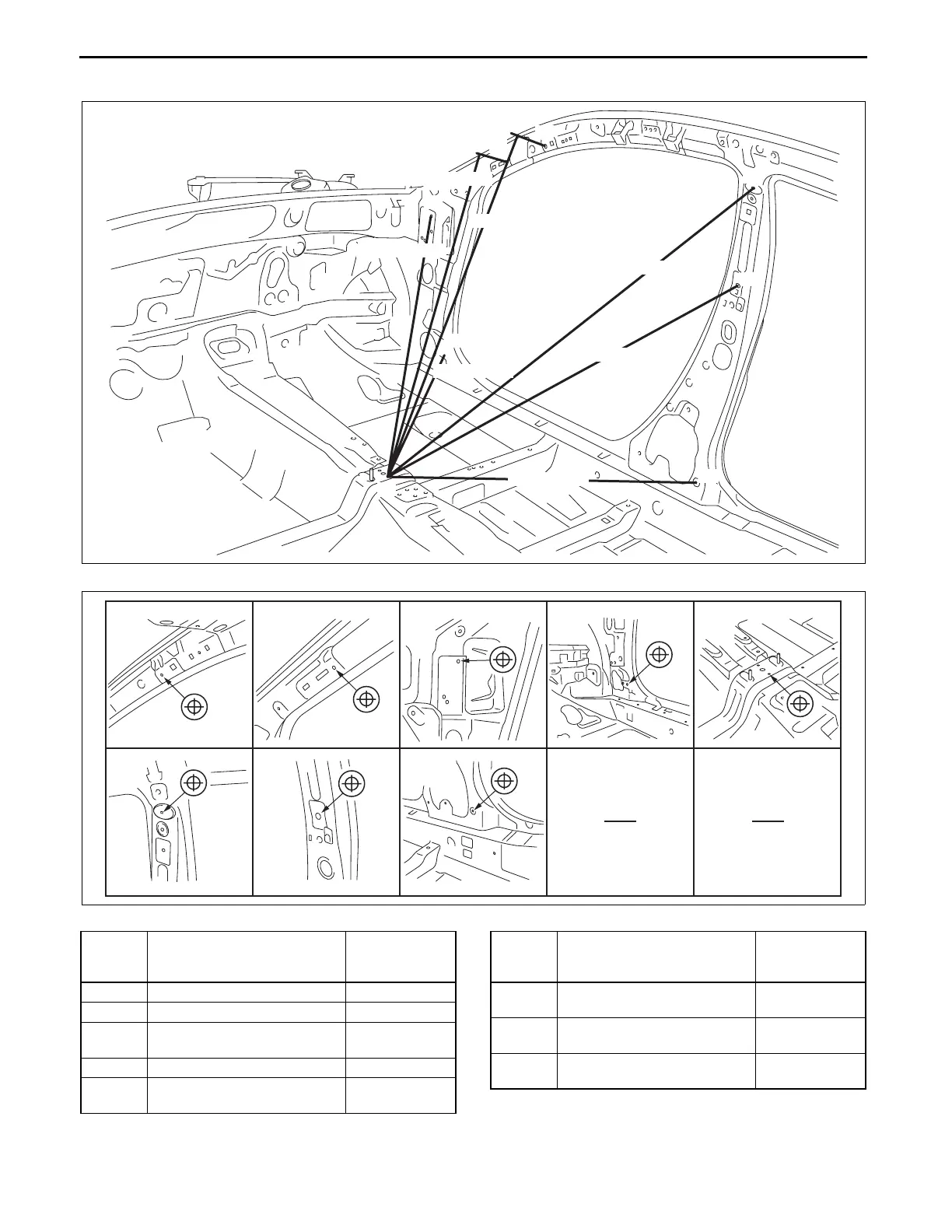

ROOM STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010743300
.
End Of Sie
A
B
C
D
E
F
G
H
1,082 {42.60}
1,246 {49.06}
1,054 {41.50}
1,043 {41.06}
1,073 {42.24}
881 {34.69}
930 {36.61}
am6xub0000006
A B C D E
F G H
am6xub0000006
Point
symbol
Designation
Hole diameter
or bolt or nut
size (mm {in})
A A-pillar trim installation hole φ7.2 {0.28}
B A-pillar trim installation hole φ7.2 {0.28}
C
Dashboard member
installation hole
LH:φ6 {0.2}
LH:φ7 {0.3}
D Hinge pillar (inner) datum hole φ7 {0.3}
E
Wiring harness installation
hole
φ7 {0.3}
F
Center pillar innner datum
hole
φ8 {0.3}
G
Front seat belt adjust
installation hole
φ16 {0.63}
H
Center pillar innner datum
hole
φ7 {0.3}
Point
symbol
Designation
Hole diameter
or bolt or nut
size (mm {in})
