GENERAL INFORMATION
00-00–9
00-00

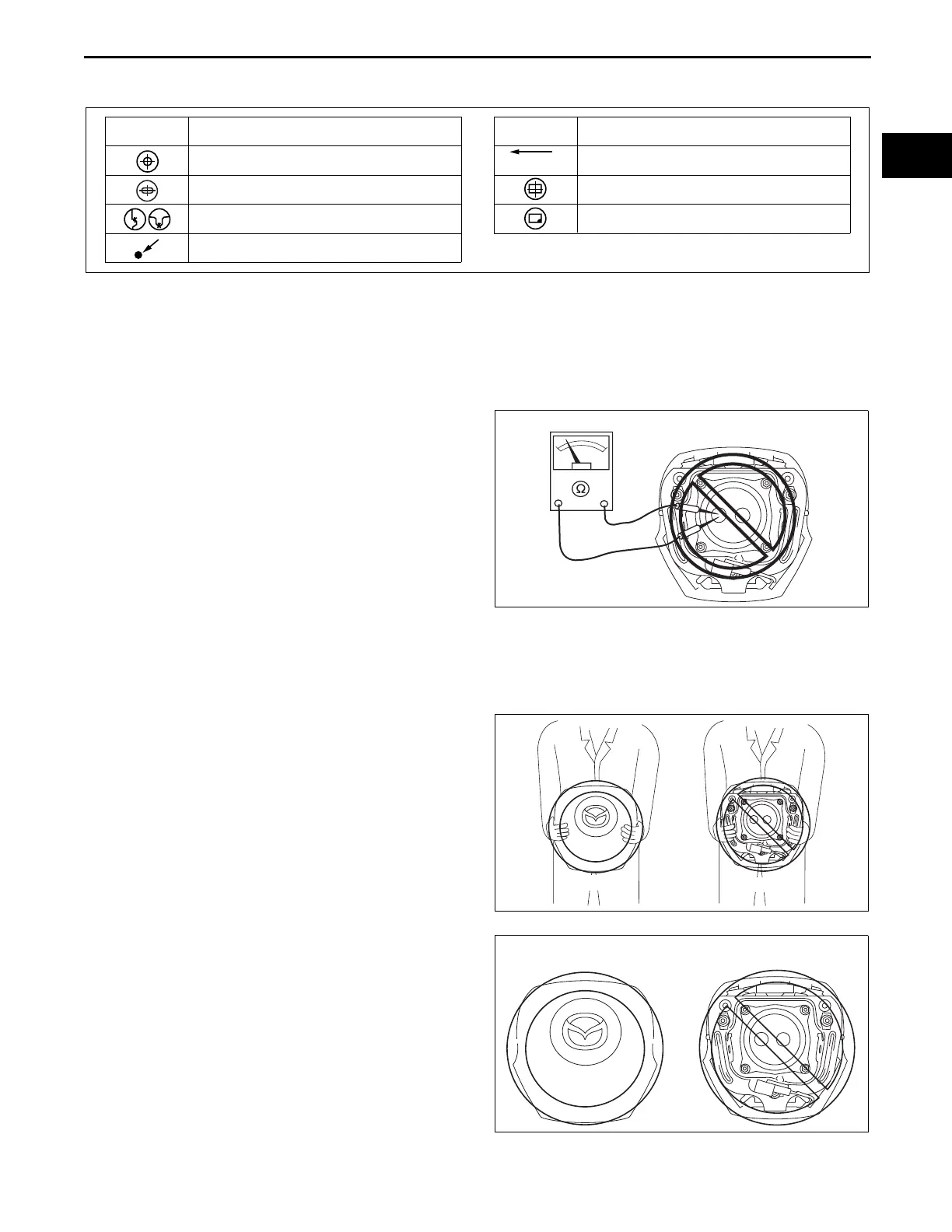

Symbols of Body Dimensions
• The following 8 symbols are used to indicate the standard points.
End Of Sie
AIR BAG SYSTEM SERVICE WARNINGS
id000000920000
Air Bag Module Inspection
• Inspecting an air bag module using a tester can operate (deploy) the air bag module, which may cause
serious injury. Do not use a tester to inspect an air bag module. Always use the on-board diagnostic
function to diagnose the air bag module for malfunctions.
Air Bag Module Handling
• Before removing the air bag module or disconnecting the air bag module connector, always switch the
ignition to off, disconnect the negative battery cable, and then wait for 1 min or more to allow the
backup power supply of the SAS control module to deplete its stored power.
• Handling a live (undeployed) air bag module
that is pointed toward your body could result
in serious injury if the air bag module were to
accidentally operate (deploy). When carrying
a live (undeployed) air bag module, point the
deployment surface away from your body to
lessen the chance of injury in case it operates
(deploys).
• A live (undeployed) air bag module placed
with its deployment surface to ground is
dangerous. If the air bag module were to
accidentally operate (deploy), it could cause
serious injury. Always place a live
(undeployed) air bag module with its
deployment surface up.
SYMBOL
MEANING
SYMBOL
MEANING
Center of circular hole
Center elliptical hole
Notch
Panel seam, bead, etc.
Bolt tip
(arrow only)
Center of rectangular-shaped hole
Edge of rectangular-shaped hole
acxuub00000037
NO GOOD
am6xuw0000180
GOOD
NO GOOD
am6xuw0000180
NO GOOD
GOOD
am6xuw0000180
