BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–11
09-80B
COWL SIDE REINFORCEMENT REMOVAL [PANEL REPLACEMENT]
id098008741700
Symbol Mark
Removal Procedure

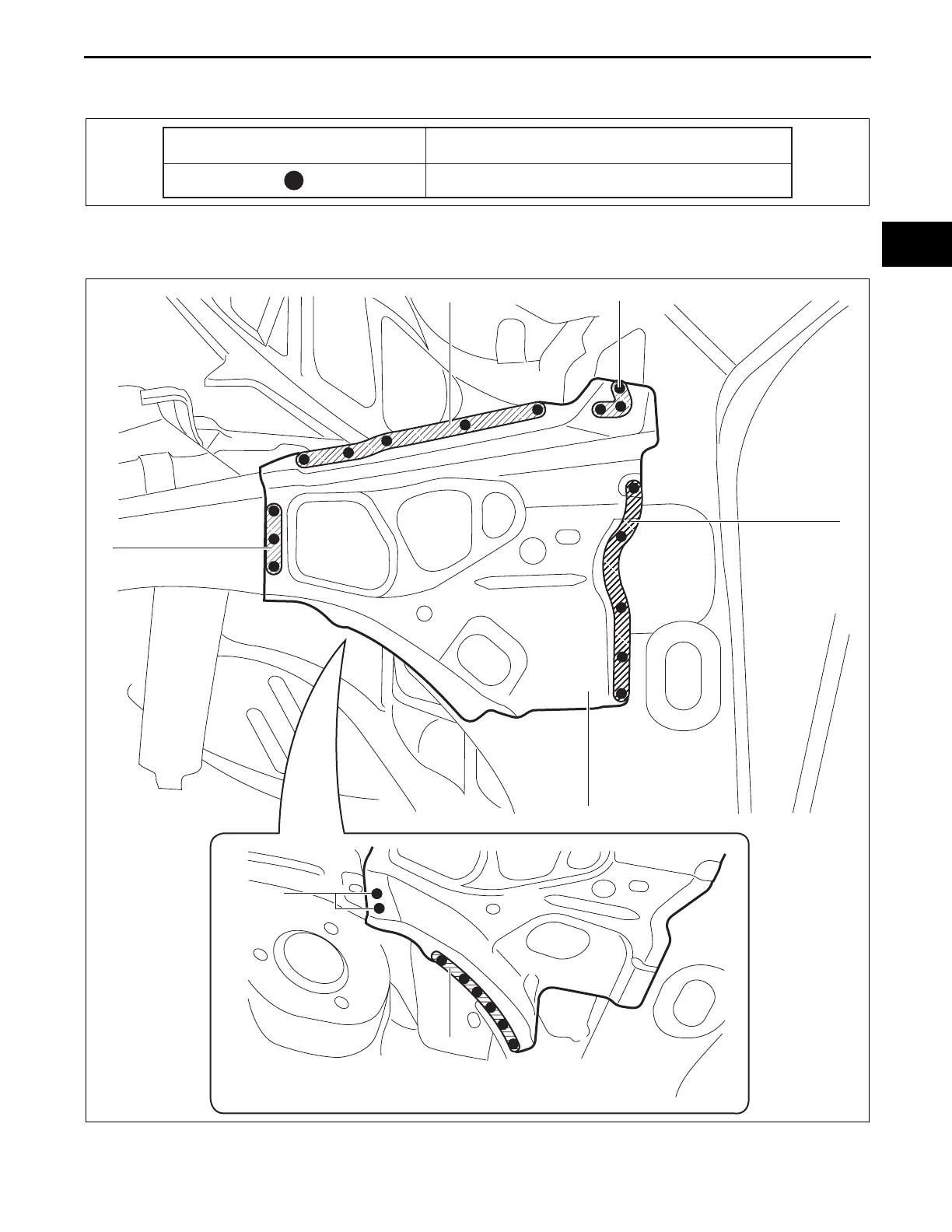

1. Drill the 24 locations indicated shown in the figure.
2. Remove the cowl side panel.
End Of Sie
SPOT WELDING
MEANING
SYMBOL MARK
am6zzb0000004
5
5
3
3
COWL SIDE REINFORCEMENT
2
6
am6xub0000001
