BODY STRUCTURE [DIMENSIONS]
09-80D–12
End Of Sie

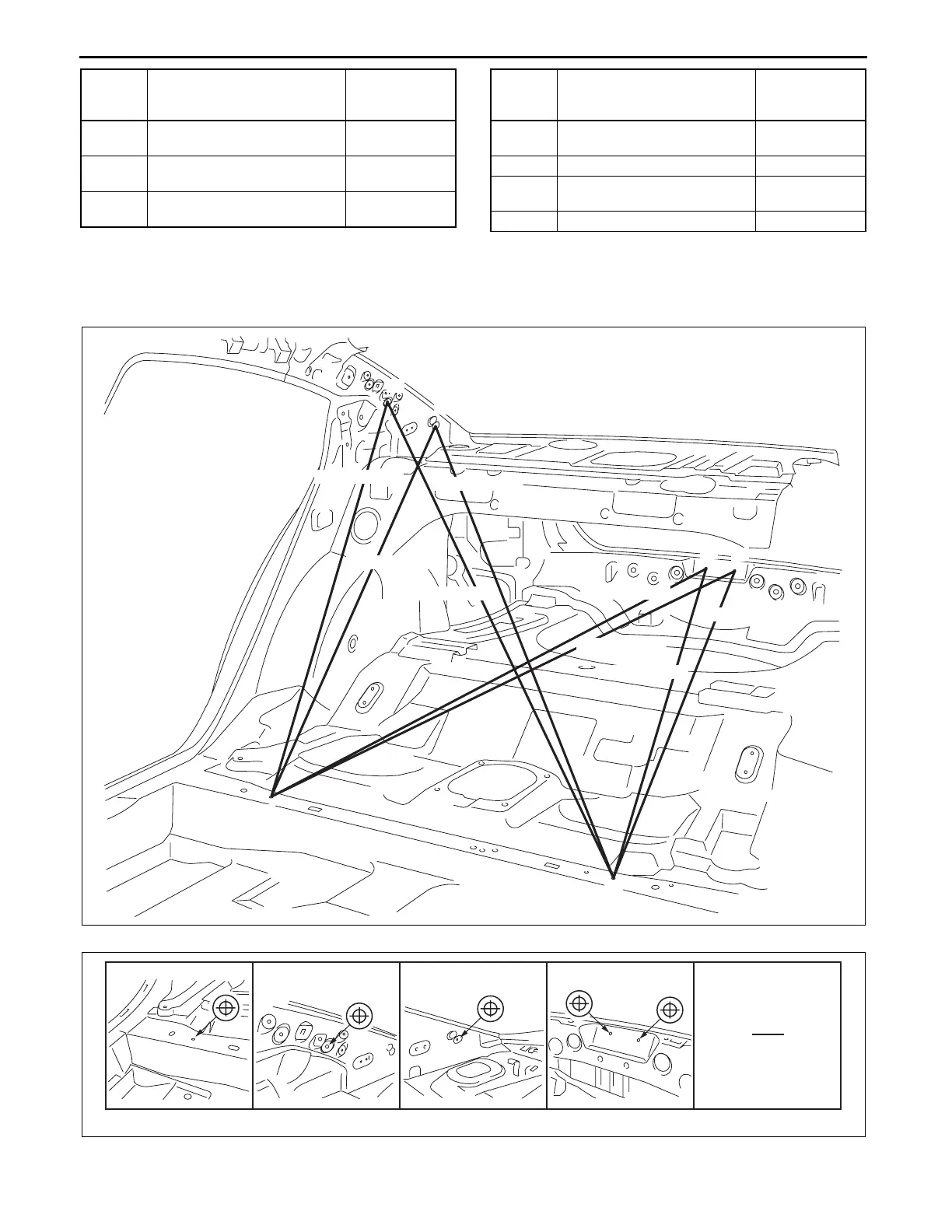

ROOM STRAIGHT-LINE DIMENSIONS (3) [DIMENSIONS]
id098010746200
.
Point
symbol
Designation
Hole diameter
or bolt or nut
size (mm {in})
A
Center pillar innner datum
hole
φ8 {0.3}
B
Front seat belt adjust
installation hole
φ16 {0.63}
C
Center pillar innner datum
hole
φ7 {0.3}
D
Crossmember No.3 datum
hole
φ6 {0.2}
E C-pillar trim installation hole φ8 {0.3}
F
Tire house trim installation
hole
φ8.6 {0.34}
G Rear pillar inner datum hole φ6 {0.2}
Point
symbol
Designation
Hole diameter
or bolt or nut
size (mm {in})
B
D
D'
A'
A
C
1,682 {66.22}
1,166 {45.91}
1,315 {51.77}
1,557 {61.30}
1,827 {71.93}
1,848 {72.76}
1,844 {72.60}
1,824 {71.81}
am6xub0000006
A B C D
am6xub0000006
