BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–51
09-80B
FRONT PILLAR INSTALLATION [PANEL REPLACEMENT]
id098008744800
Symbol Mark
Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. Apply body sealer to the joints of old and new parts for waterproofing and rust protection.

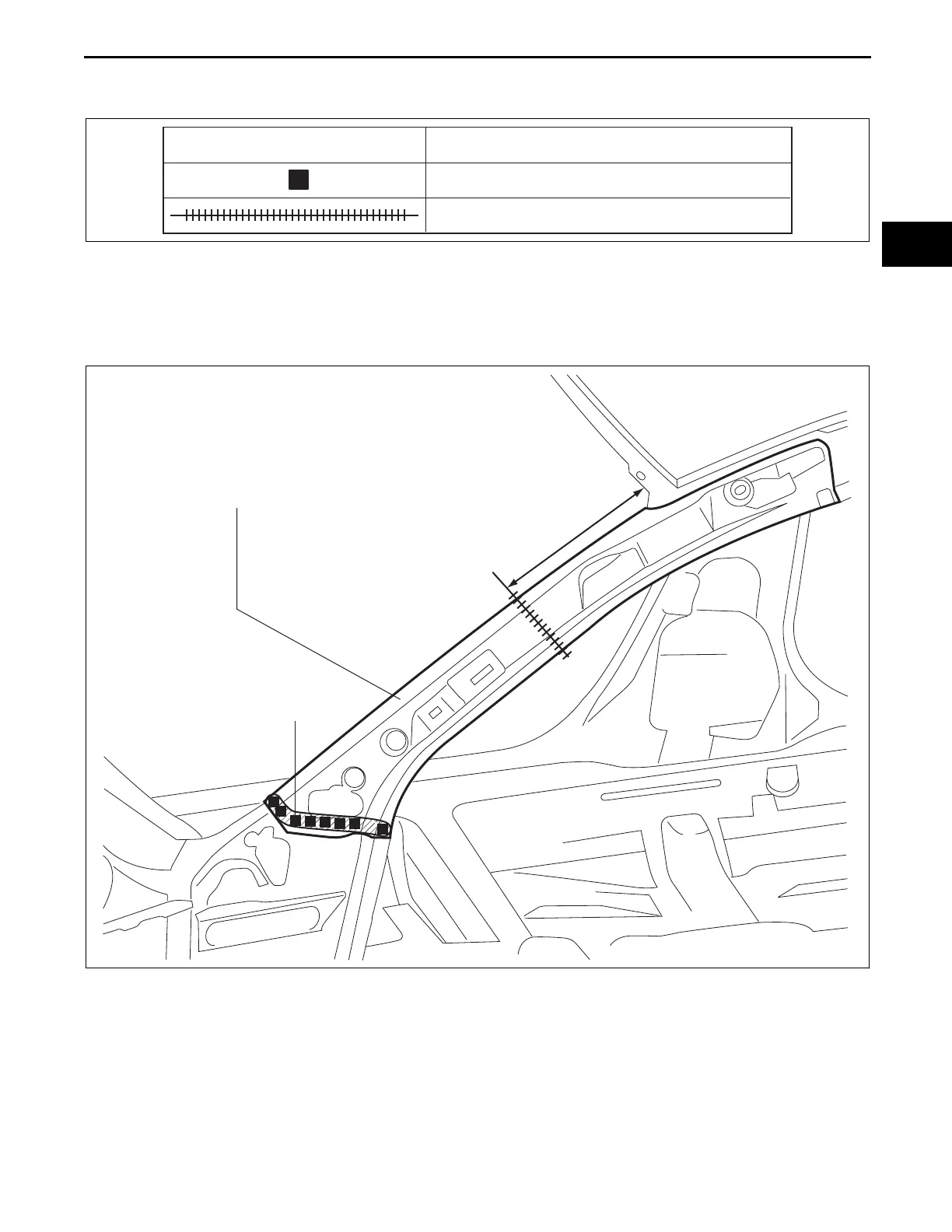

4. Cut-and-join area locations indicated by (A) then plug weld the 8 locations indicated by (B) shown in the figure.
SYMBOL MARK
MEANING
PLUG WELDING (CO
2
ARC WELDING)
CONTINUOUS CO
2
ARC WELDING (CUT-AND-JOIN LOCATION)
am2zzb0000008
(B) 8
220 mm {8.66 in}
FRONT PILLAR (INNER)
(A)
am6zzb0000007
