SIDE SILL PANEL INSTALLATION [PANEL REPLACEMENT]
id098008743800
Symbol Mark
Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

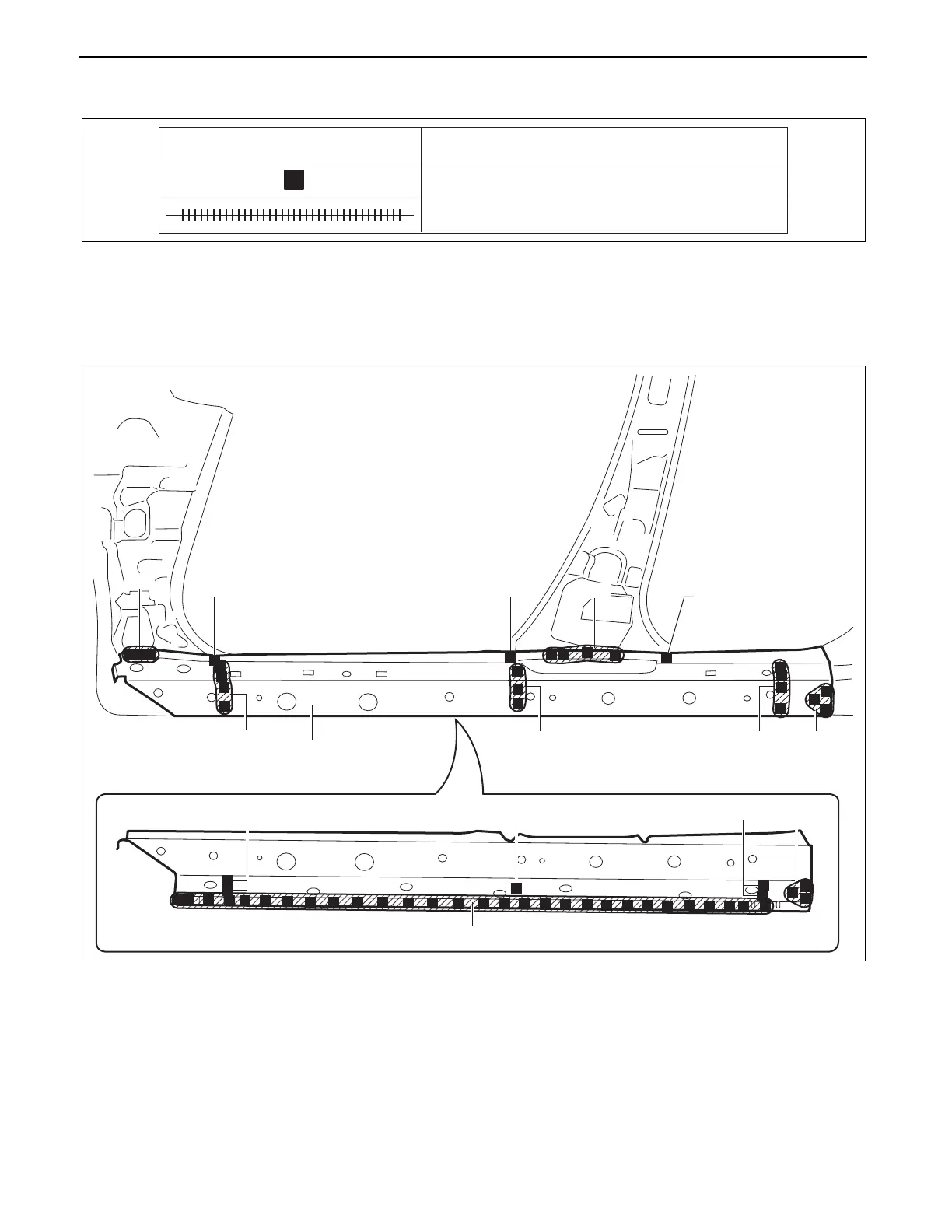

4. Plug weld the 61 locations indicated by (A) shown in the figure.
5. Install the side sill reinforcement.
SYMBOL MARK
MEANING
PLUG WELDING (CO
2
ARC WELDING)
CONTINUOUS CO
2
ARC WELDING (CUT-AND-JOIN LOCATION)
am6zzb0000024
SIDE SILL
REINFORCEMENT
(A) 29
(A) 2
(A) 1
(A) 2
(A) 4
(A) 3
(A) 3
(A) 3
(A) 4
(A) 3
(A) 1
(A) 1
(A) 4
(A) 1
am6zzb0000024
