BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–63
09-80B

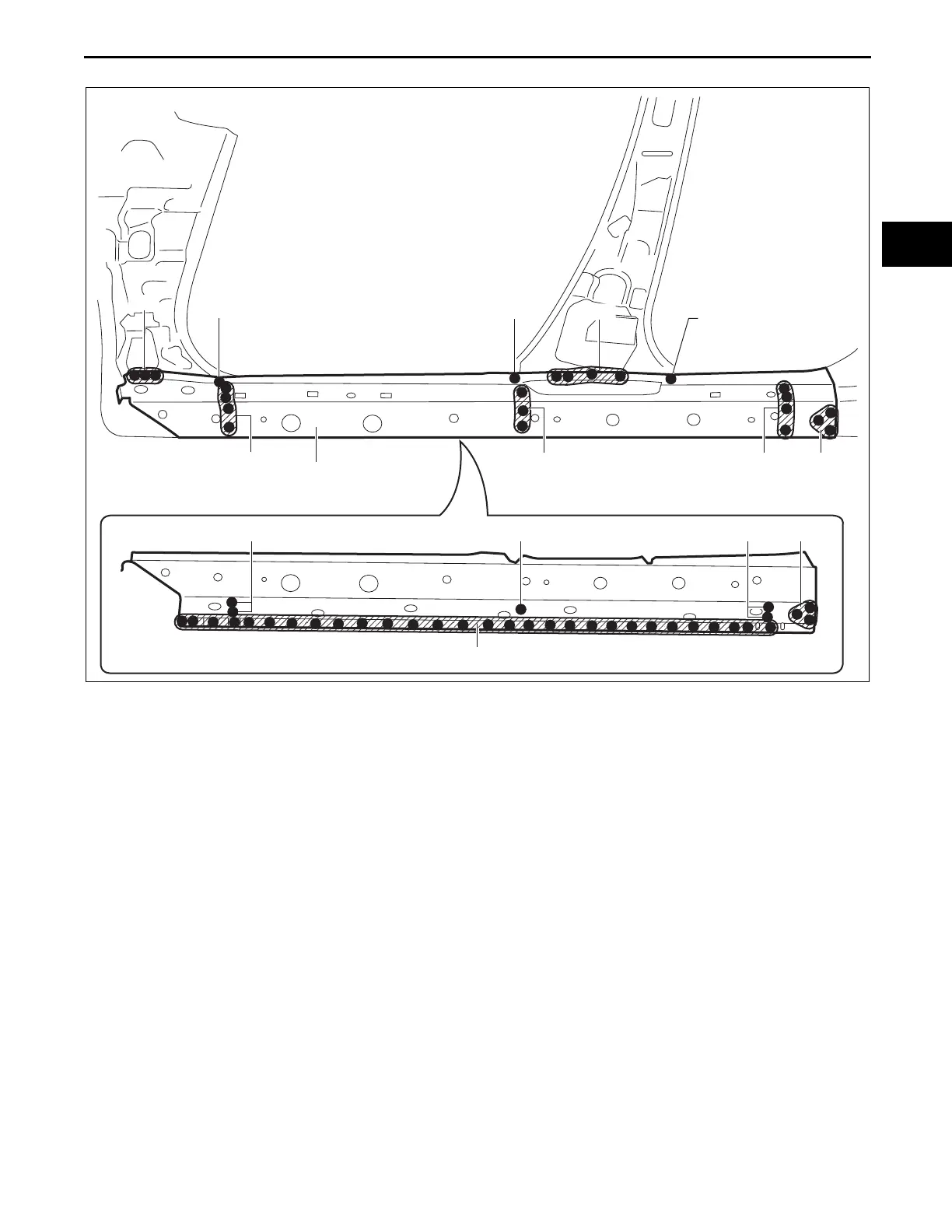

5. Drill the 61 locations indicated by (E) shown in the figure
6. Remove the side sill reinforcement.
End Of Sie
SIDE SILL
REINFORCEMENT
(E) 29
(E) 2
(E) 1
(E) 2
(E) 4
(E) 3
(E) 3
(E) 3
(E) 4
(E) 3
(E) 1
(E) 1
(E) 4
