BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–30
FRONT SIDE FRAME COMPONENT INSTALLATION [PANEL REPLACEMENT]
id098008742000
Symbol Mark
Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

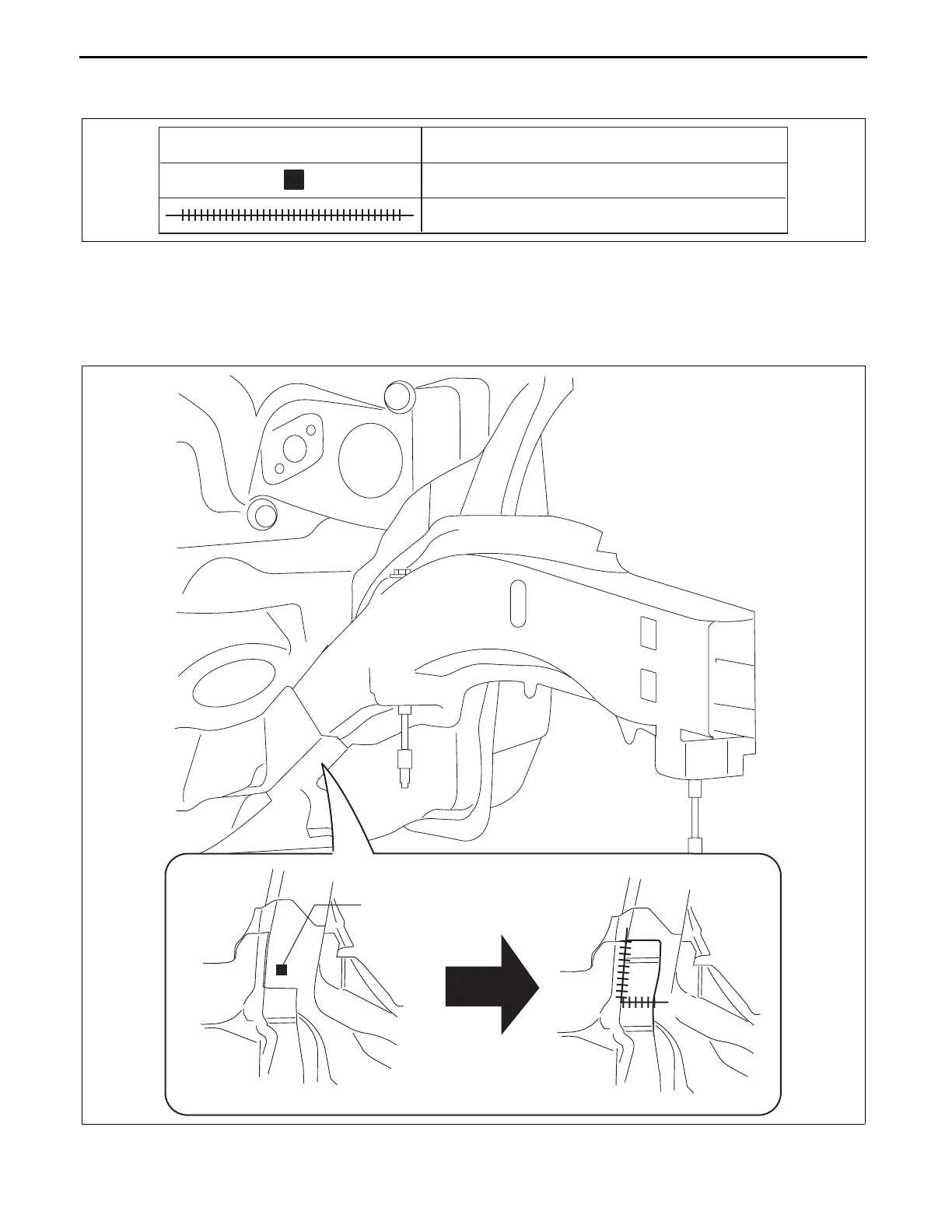

4. Plug weld the 1 location indicated by (A) shown in the figure.
5. Cut-and-join area indicated by (B) shown in the figure.
SYMBOL MARK
MEANING
PLUG WELDING (CO
2
ARC WELDING)
CONTINUOUS CO
2
ARC WELDING (CUT-AND-JOIN LOCATION)
am6zzb0000024
(A) 1
(B)
am6zzb0000016
