BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–83
09-80B
FLOOR SIDE PANEL INSTALLATION [PANEL REPLACEMENT]
id098008618800
Symbol Mark
Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

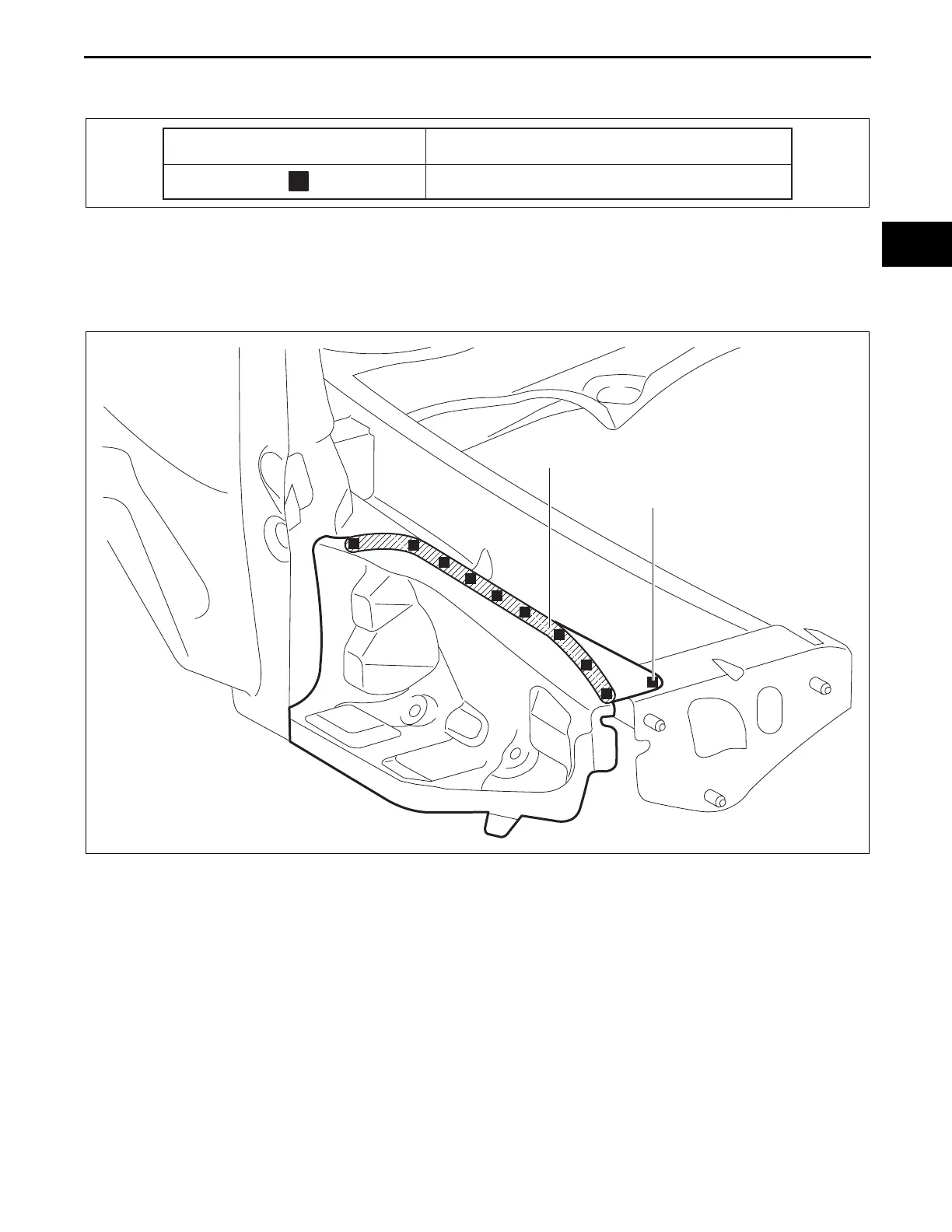

4. Plug weld the 14 locations indicated by (A) shown in the figure.
SYMBOL MARK
MEANING
PLUG WELDING (CO
2
ARC WELDING)
am6zzb0000002
(A) 1
(A) 13
am6xub0000005
7)$HOࡍࠫ㧞㧜㧜㧥ᐕ㧣㧞㧞ᣣޓ᳓ᦐᣣޓඦ೨㧝㧝ᤨ㧠㧟ಽ
To Next Page
