TORQUE BOX REMOVAL [PANEL REPLACEMENT]
id098008607100
Symbol Mark
Removal Procedure

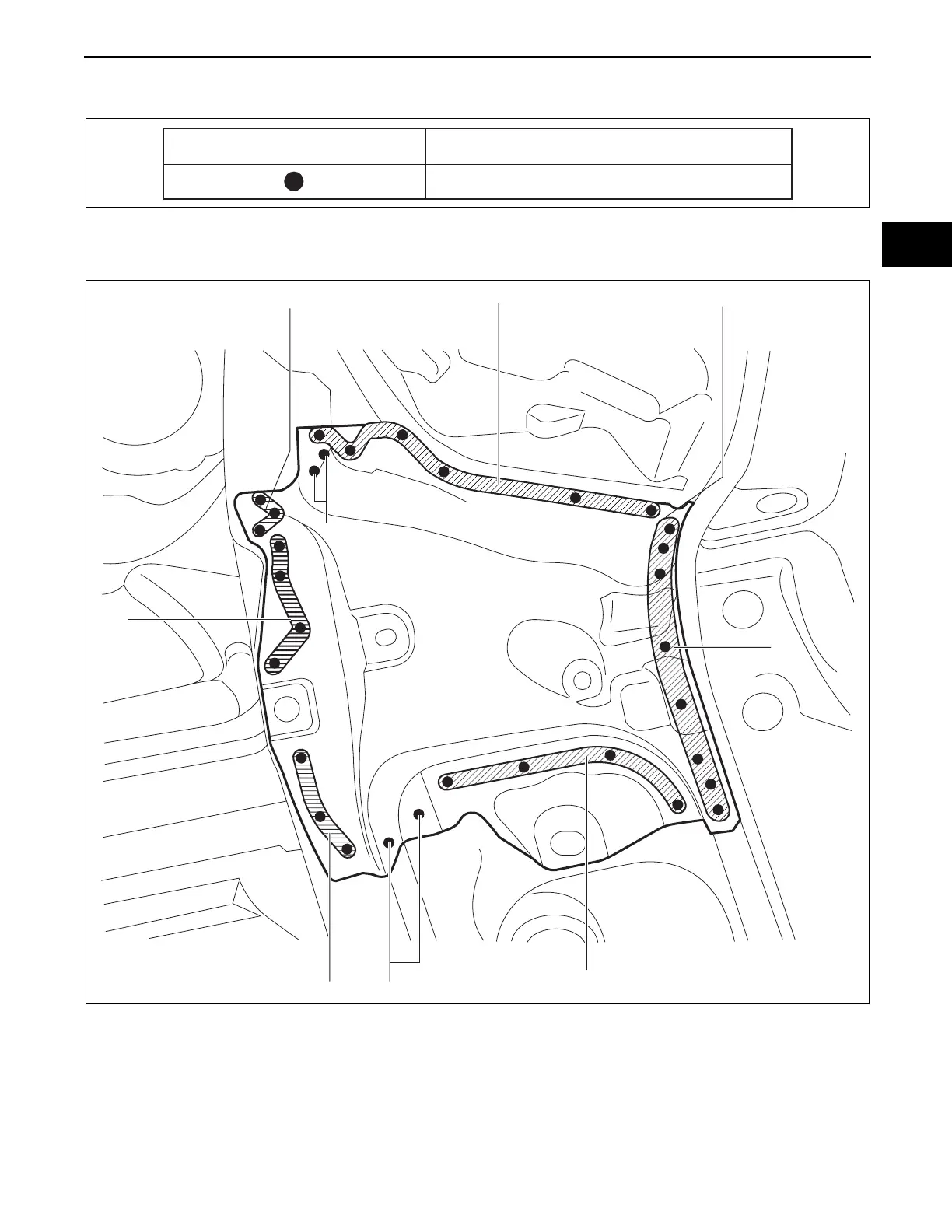

1. Drill the 32 locations indicated shown in the figure.
2. Remove the torque box.
End Of Sie
SYMBOL MARK
MEANING
SPOT WELDING
am6zzb0000002
2
8
4
4
6
3
TORQUE BOX
3
2
am6zzb0000006
