Mazda 6 2009 - Rear Fender Panel Removal [Panel Replacement]; Symbol Mark; Removal Procedure

BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–67
09-80B
REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]
id098008744900
Symbol Mark
Removal Procedure

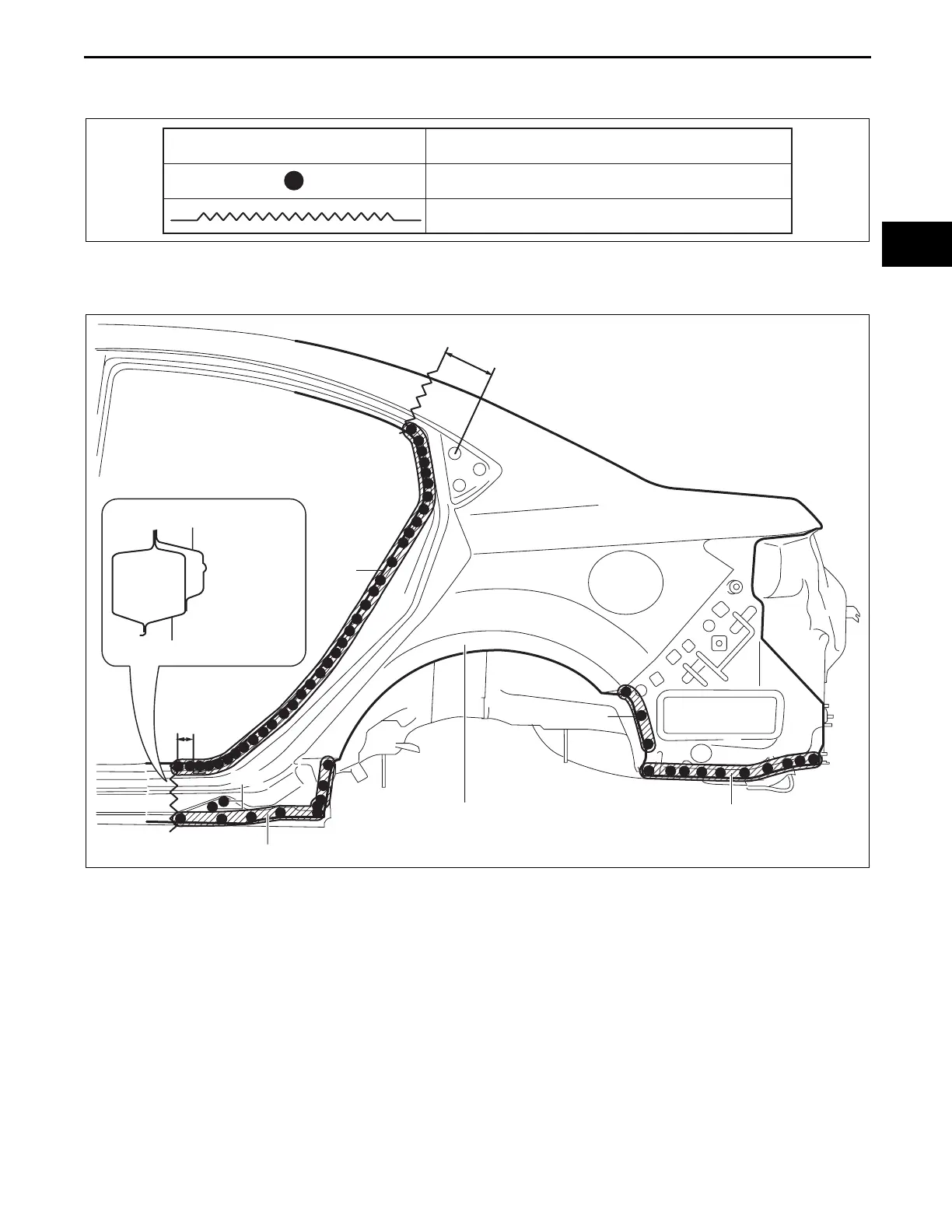

1. Rough cut area locations indicated by (A) then drill the 88 locations indicated by (B) shown in the figure.
Caution
x During rough cutting, be careful not to damage the side sill reinforcement.
SYMBOL MARK
MEANING
SPOT WELDING
ROUGH CUT LOCATION
am6xub0000008
REAR FENDER PANEL
(B) 4
(B) 10
(B) 36
140 mm
{5.51 in}
50 mm
{2.0 in}
(B) 9
(B) 2
(A)
(A)
REAR FENDER PANEL
SIDE SILL REINFORCEMENT
am6xub0000008
