Mazda 6 2009 - Rear Floor Pan Removal [Panel Replacement]; Symbol Mark; Removal Procedure

BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–85
09-80B
REAR FLOOR PAN REMOVAL [PANEL REPLACEMENT]
id098008742700
Symbol Mark
Removal Procedure

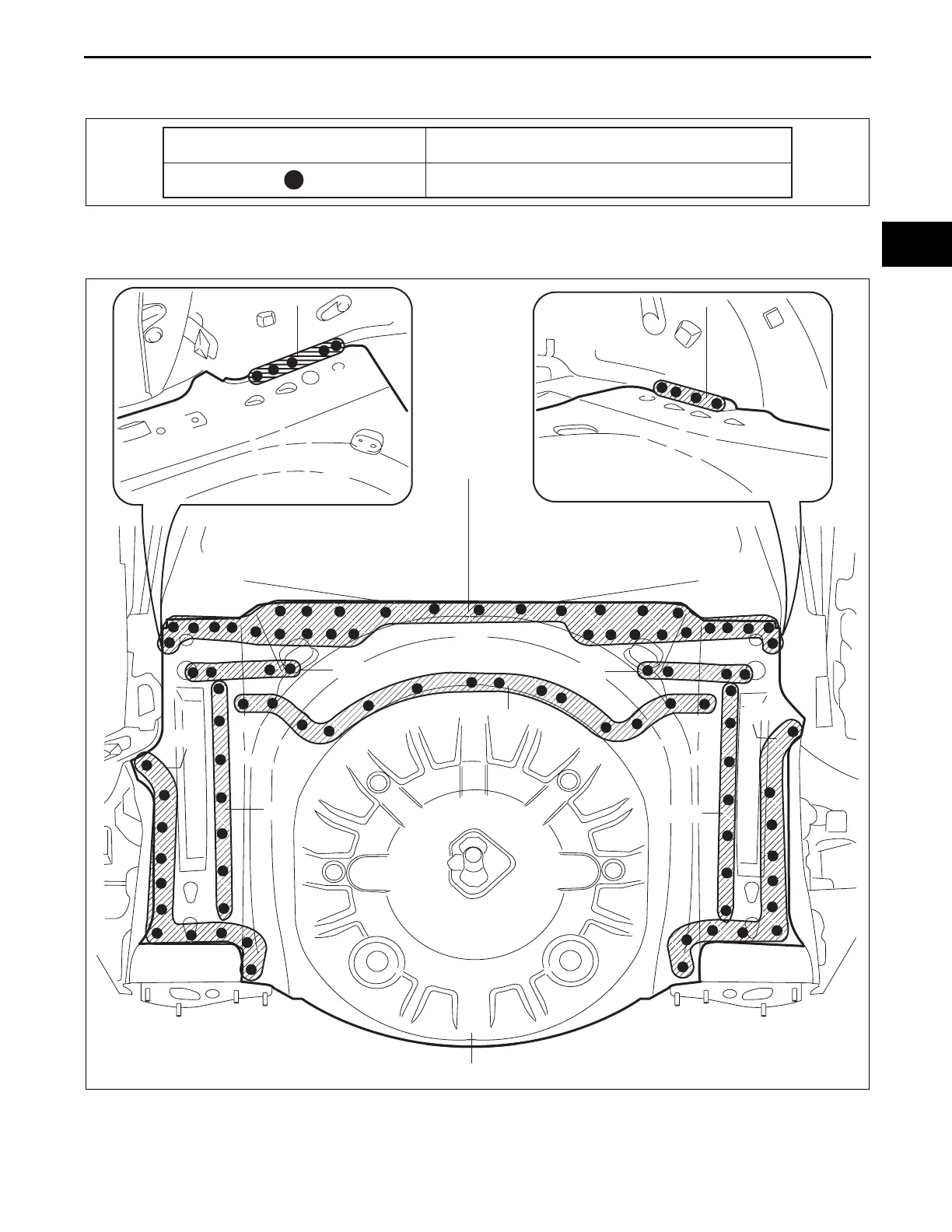

1. Drill the 114 locations indicated by (A) shown in the figure.
SPOT WELDING
MEANING
SYMBOL MARK
adejjb00000042
(A)5
(A)4
(A)4
(A)31
(A)20
(A)4
(A)14
(A)14
(A)9
(A)9
REAR FLOOR PAN
am6xub0000005
