GENERAL INFORMATION
00-00–15
00-00

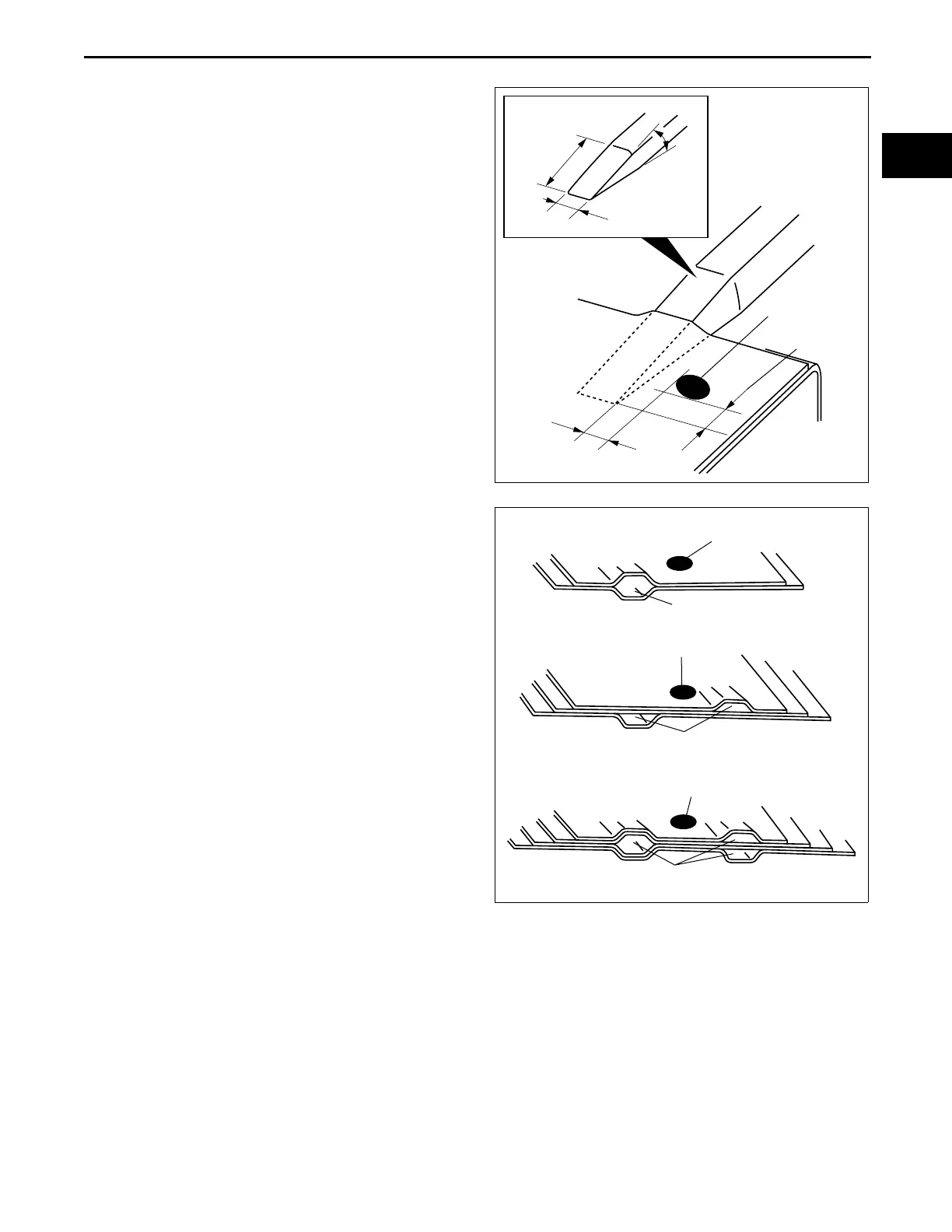

Checking Weld Strength
• Installation locations of the engine, chassis, and
seat belts are designated as important safety
locations for weld strength. Check weld strength
by driving a chisel between the panels at every
fourth or fifth weld spot, and every tenth regular
weld location.
• Drive the chisel between the panels according to
the number of panels as shown below.
• To determine weld strength, drive the chisel
between the panel and check whether the panels
come apart. If the panels come apart, make
another weld near the original weld.
• Restore the shape of the checked area.
End Of Sie
CHISEL DIMENSIONS
25 mm
{0.98 in}
8 mm {0.31 in}
{0.20 in}
{0.20 in}
20°
WELD LOCATION
WITHIN 5 mm
WITHIN 5 mm
am3uub0000007
TWO PANELS
WELD LOCATION
THREE PANELS
ONE LOCATION
TWO LOCATION
FOUR PANELS
THREE LOCATION
WELD LOCATION
WELD LOCATION
am3uub0000008
