BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–18
APRON REINFORCEMENT (LOWER) INSTALLATION [PANEL REPLACEMENT]
id098008741400
Symbol Mark
Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

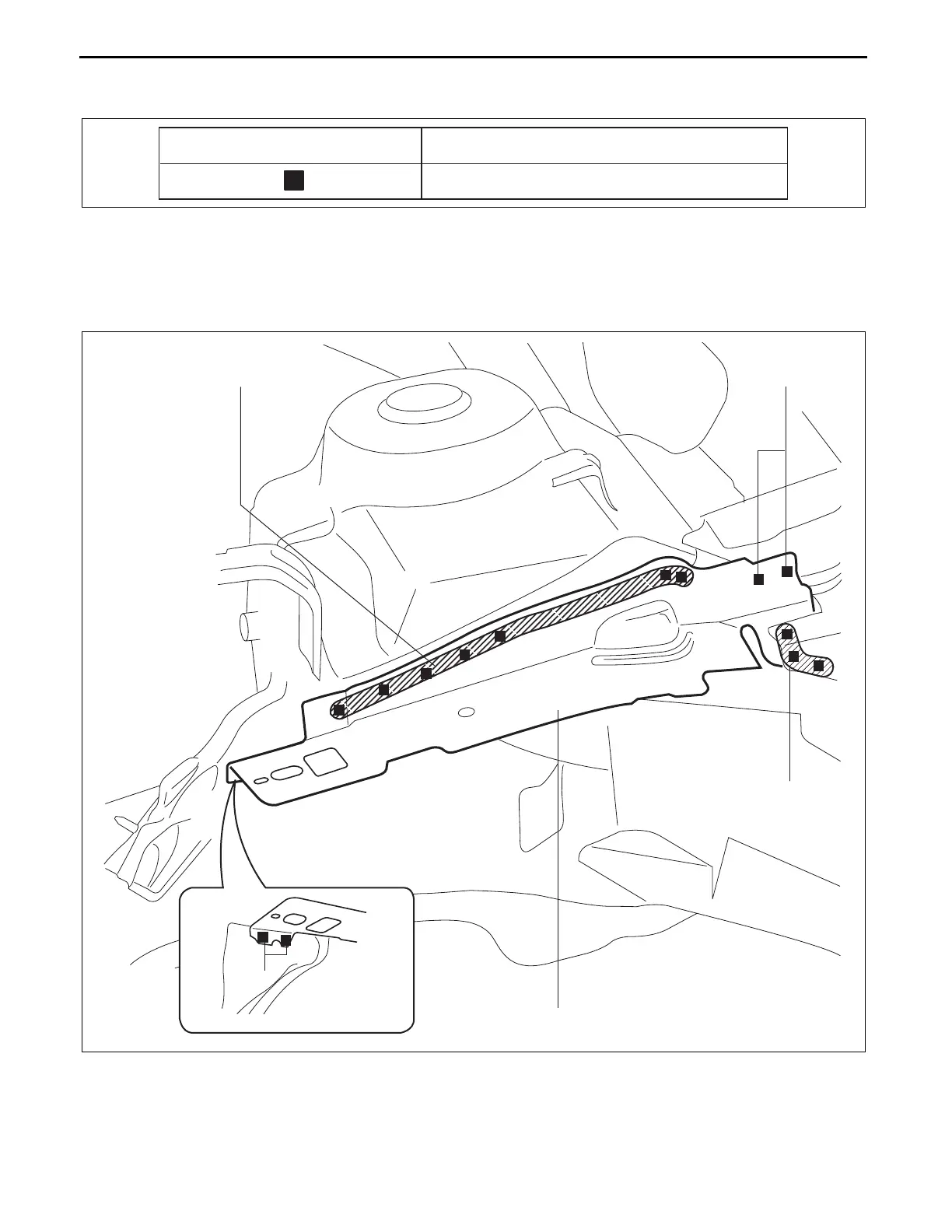

4. Plug weld the 14 locations indicated shown in the figure.
End Of Sie
BM: WHEEL APRON PANEL
SYMBOL MARK
MEANING
PLUG WELDING (CO
2
ARC WELDING)
am6zzb0000005
2
APRON REINFORCEMENT
(LOWER)
7
2
3
am6xub0000002
