BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–9
09-80B
SHROUD SIDE MEMBER INSTALLATION [PANEL REPLACEMENT]
id098008919100
Symbol Mark
Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

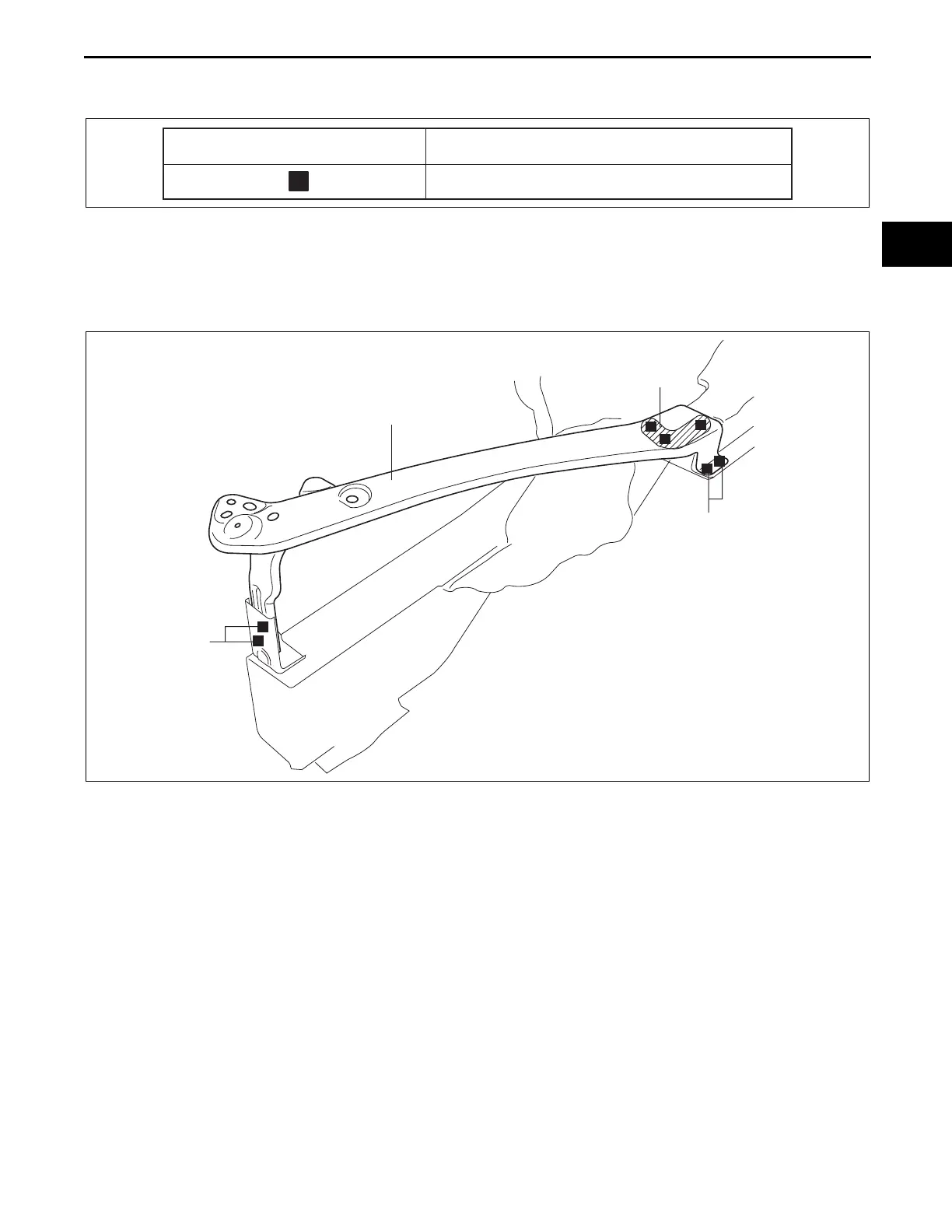

4. Plug weld the 7 locations indicated shown in the figure.
5. Install the shroud side member.
SYMBOL MARK
MEANING
PLUG WELDING (CO
2
ARC WELDING)
am6zzb0000001
SHROUD SIDE MEMBER
2
2
3
am6xub0000001
