BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–47
09-80B
FRONT PILLAR REMOVAL [PANEL REPLACEMENT]
id098008744700
Symbol Mark
Removal Procedure

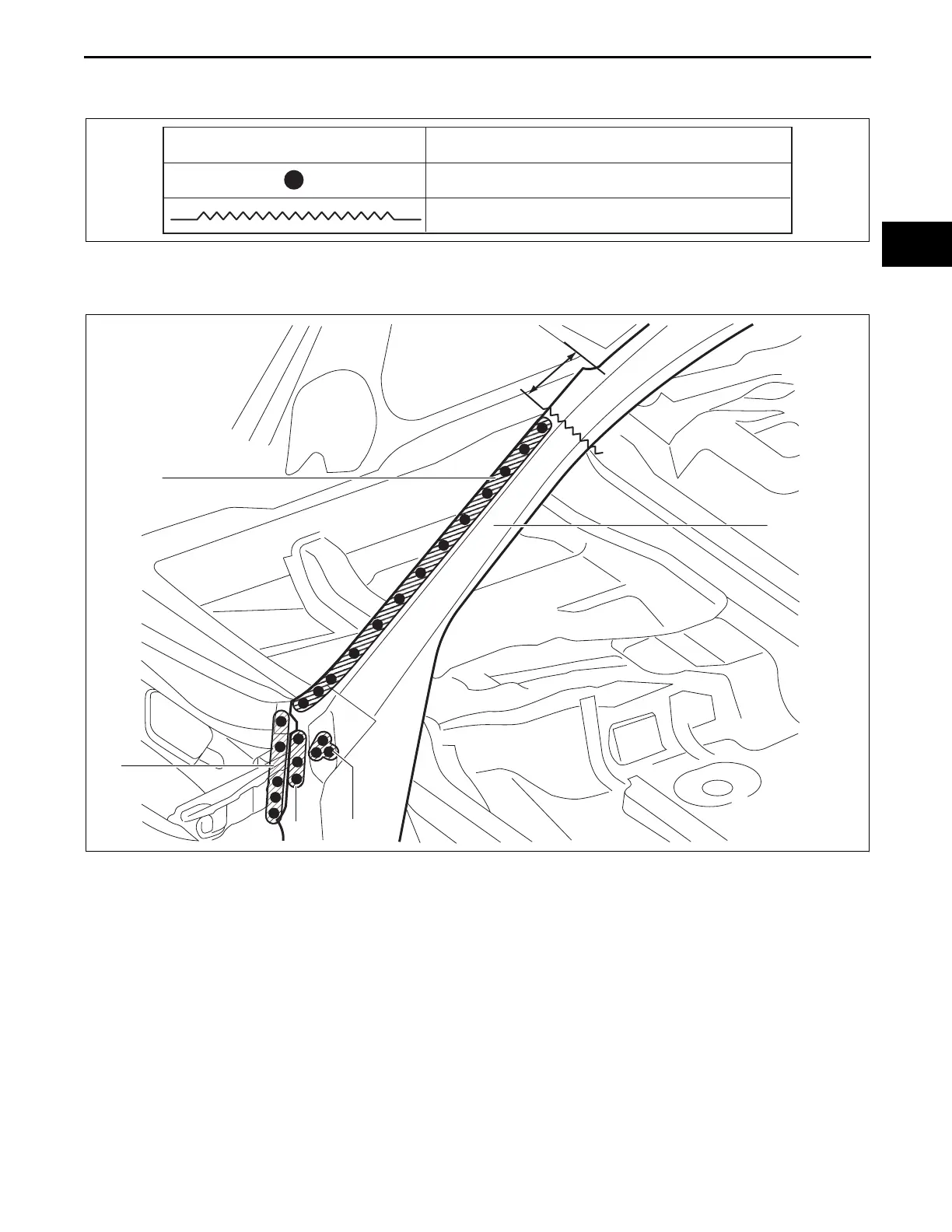

1. Rough cut area (A), drill the 77 locations indicated by (B) shown in the figure.
SYMBOL MARK
MEANING
SPOT WELDING
ROUGH CUT LOCATION
am2zzb0000008
100 mm {3.94 in}
FRONT PILLAR
(OUTER)
(A)
(B)13
(B) 5
(B) 3
(B) 3
am6zzb0000007
