BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–14
WIPER BRACKET COMPONENT INSTALLATION [PANEL REPLACEMENT]
id098008750100
Symbol Mark
Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

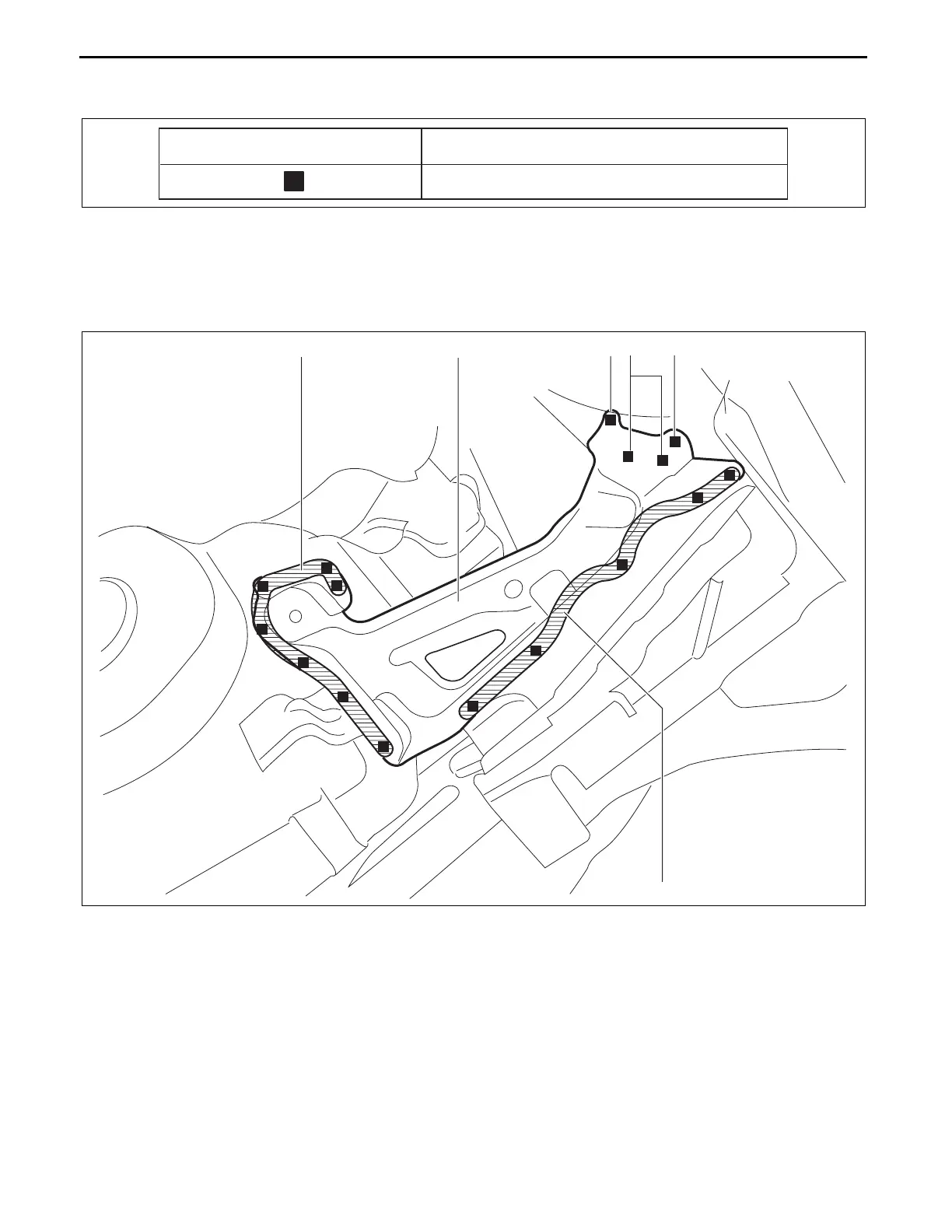

4. Plug weld the 16 locations indicated shown in the figure.
End Of Sie
BM: APRON REINFORCEMENT
SYMBOL MARK
MEANING
PLUG WELDING (CO
2
ARC WELDING)
am6zzb0000004
1
5
1
7
WIPER BRACKET
2
am6xub0000001
