Mazda 6 2009 - Rear Fender Panel Installation [Panel Replacement]; Symbol Mark; Installation Procedure

BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–71
09-80B
REAR FENDER PANEL INSTALLATION [PANEL REPLACEMENT]
id098008745000
Symbol Mark
Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. Before installing new parts, apply spot weld sealer to the tire arch line.
4. After temporarily installing new parts, make sure the related parts fit properly.

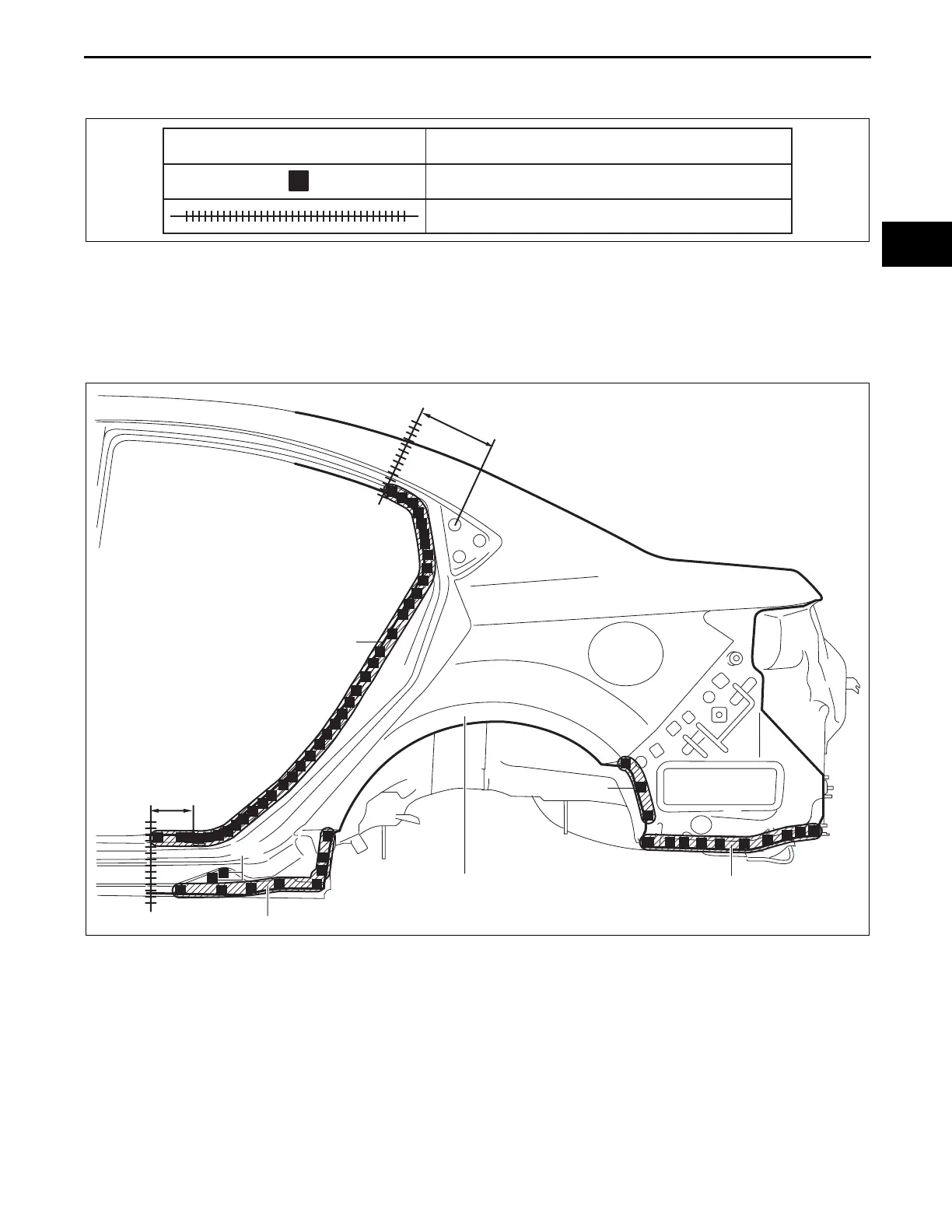

5. Cut-and-join area locations indicated by (A) then plug weld 99 locations indicated by (B) shown in the figure.
SYMBOL MARK
MEANING
PLUG WELDING (CO
2
ARC WELDING)
CONTINUOUS CO
2
ARC WELDING (CUT-AND-JOIN LOCATION)
am6xub0000008
REAR FENDER PANEL
(B) 4
(B) 10
(B) 39
100 mm
{3.94 in}
(B) 9
(B) 2
170 mm
{6.69 in}
(A)
(A)
am6xub0000008
