GENERAL INFORMATION
00-00–16
INSTALLATION PREPARATIONS
id000000600400

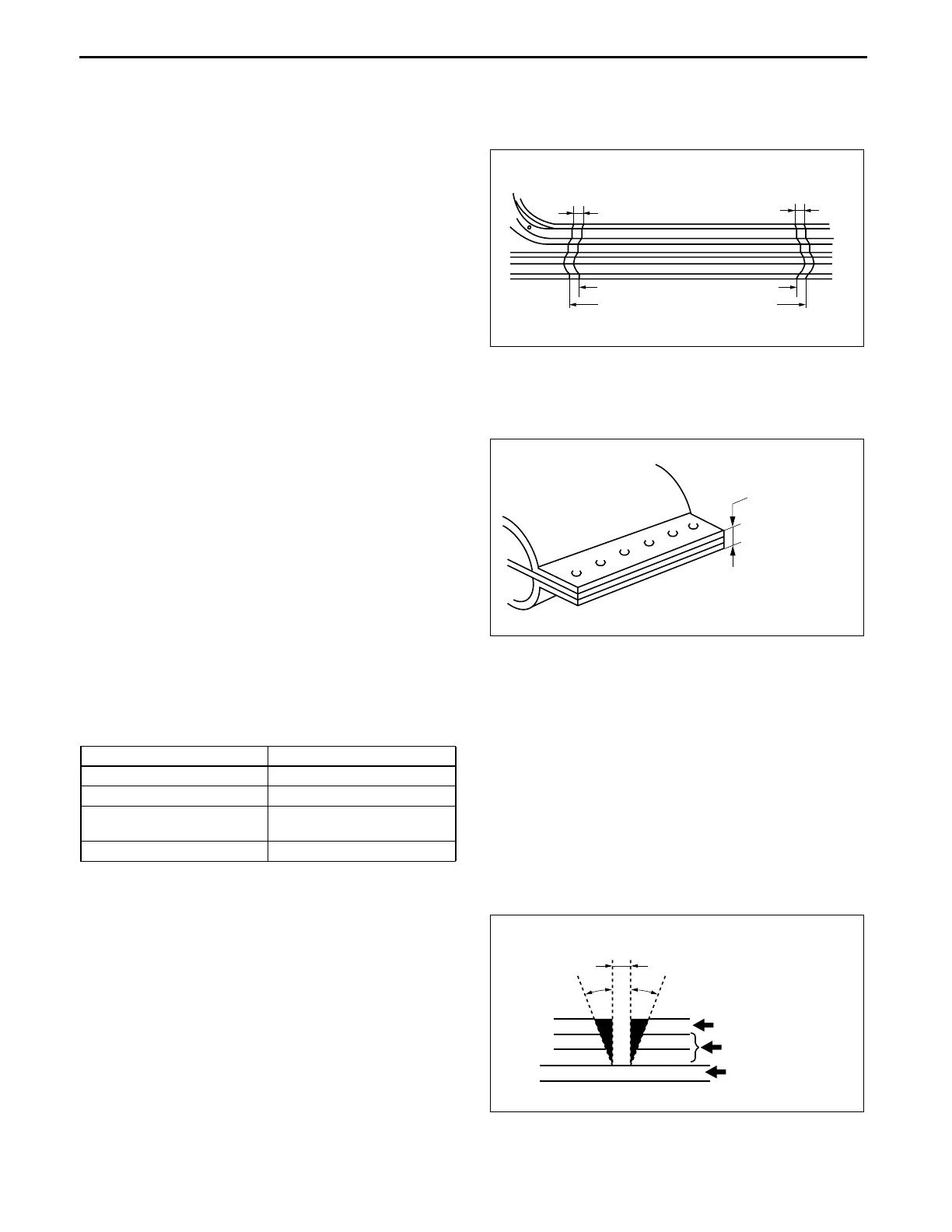

Rough Cutting of New Parts
• For cut-and-join areas, allow for an overlap of 30—50 mm {1.2—1.9 in} with the remaining area on the body
side and then rough-cut the new parts.
Determination of Welding Method
• If the total thickness at the area to be welded is 3 mm {0.12 in} or more, use a CO
2
gas shielded-arc welder to
make the plug welds.
Making Holes for CO
2
Arc Welding
• For places that cannot be spot welded, make a hole for CO
2
arc welding using a punch or drill as follows.
(mm {in})
• Grind the shaded section indicated in the diagram below and create a hole in the part where the 3—4 plates
are put together. Also, weld the plates together tightly so that gaps do not develop.
OVER LAP
BODY SIDE ROUGH CUT LOCATION
NEW PART ROUGH CUT LOCATION
30—50 mm{1.2—1.9 in}
30
—50 mm{1.2—1.9 in}
OVER LAP
am3uub0000008
3 mm
{0.1 in} OR MORE
am3uub0000008
Panel thickness (φ) Hole diameter (φ)
0.60—0.90 {0.024—0.035} 5.0 {0.20}
0.91—1.20 {0.036—0.047} 6.0 {0.24}
1.21—1.80 {0.0477—
0.0708}
8.0 {0.31}
1.81—4.50 {0.072—0.177} 10.0 {0.394}
φ
10.0 mm {0.394 in}
OUTER PANEL
MIDDLE PANEL
INNER PANEL
30°
30°
am3uub0000008
