BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–58

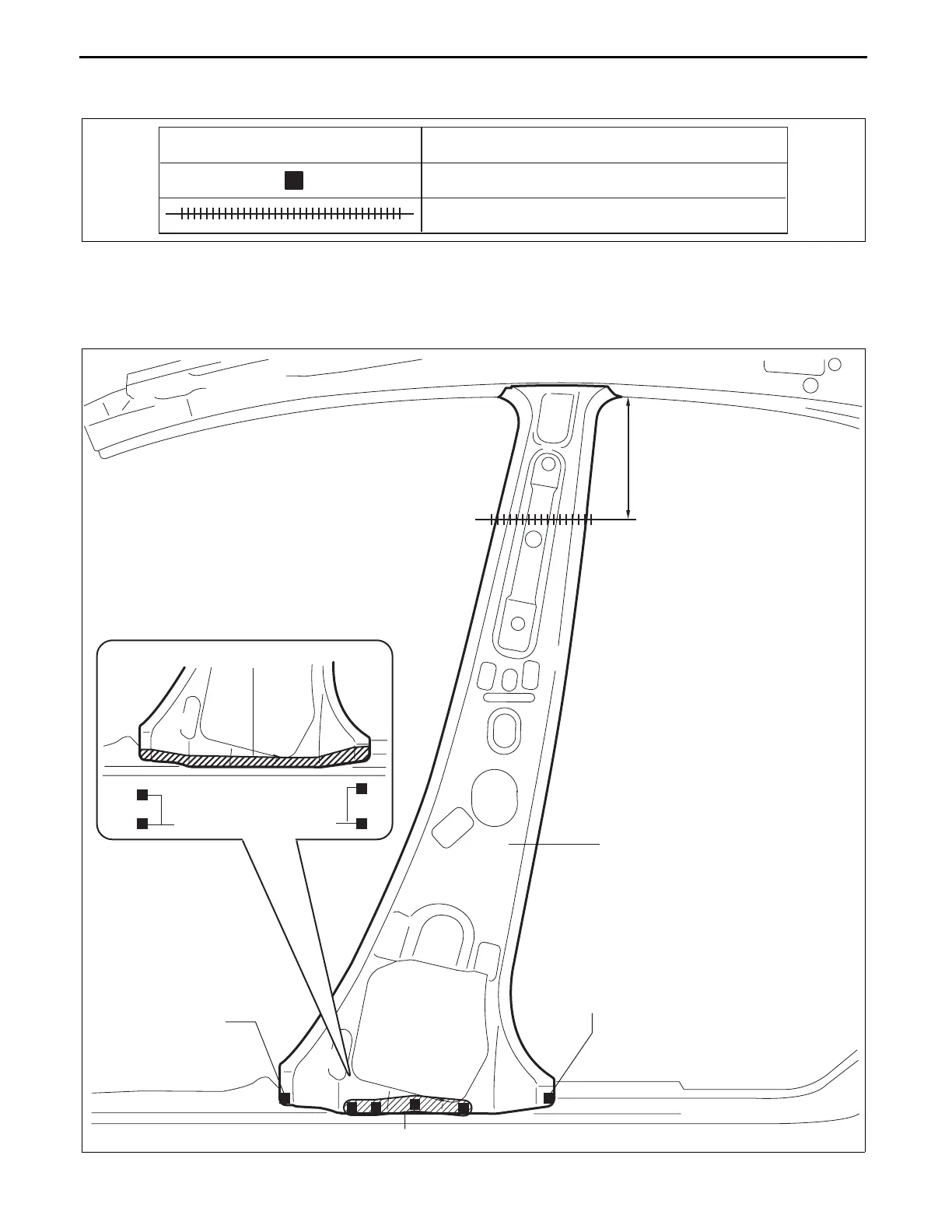

CENTER PILLAR INSTALLATION [PANEL REPLACEMENT]
id098008744000
Symbol Mark
Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. Apply the weld bond shown in the figure.
SYMBOL MARK
MEANING
PLUG WELDING (CO
2
ARC WELDING)
CONTINUOUS CO
2
ARC WELDING (CUT-AND-JOIN LOCATION)
am6zzb0000024
(A)
(B) 1
(B) 1
(B) 4
140 mm {5.51 in}
B-PILLAR (INNER)
WELD BOND APPLICATION AREA
(B) 2
(B) 2
am6xub0000007
