BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–59
09-80B

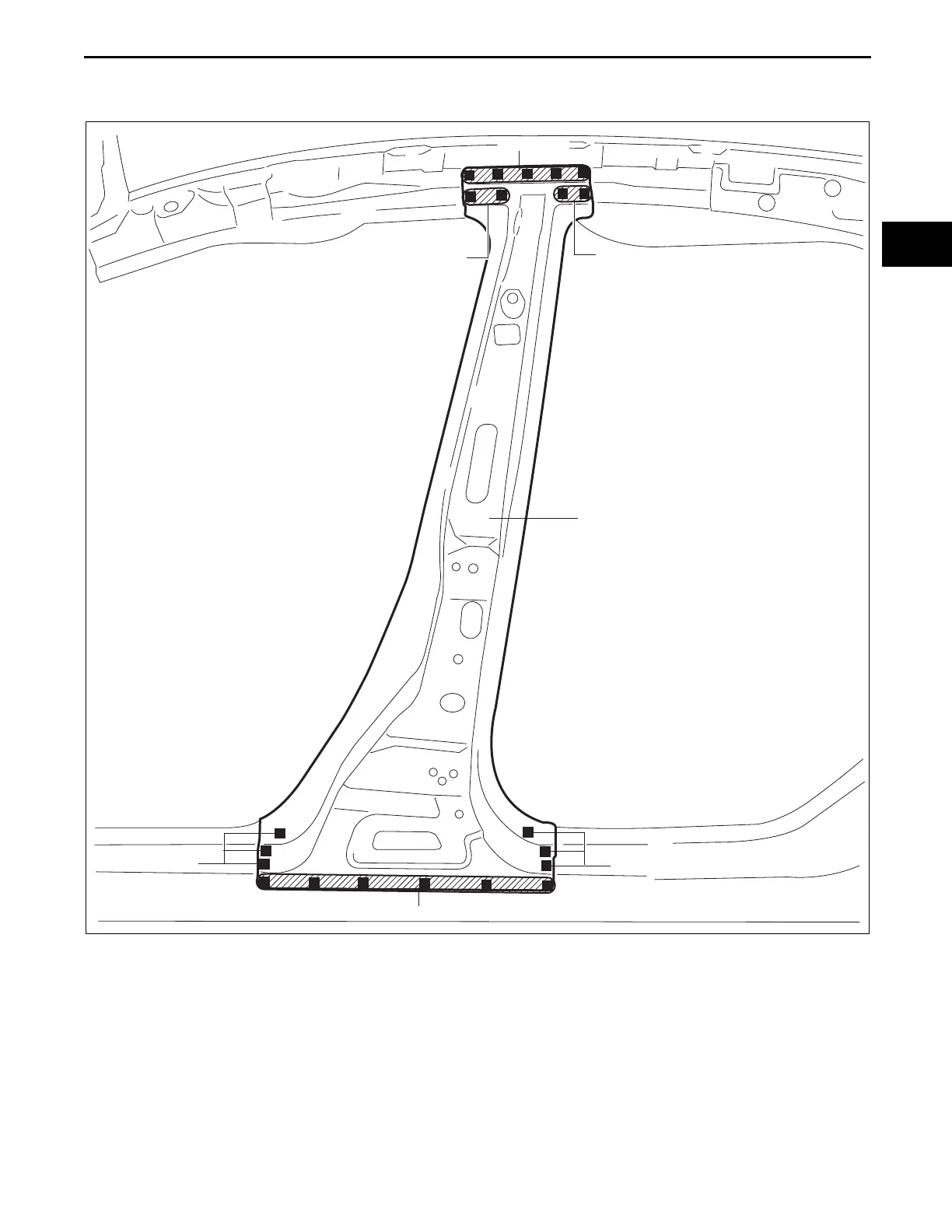

4. Cut-and-join area locations indicated by (A) then plug weld the 10 locations indicated by (B) shown in the
figure.
5. Plug weld the 19 locations indicated by (C) shown in the figure.
6. After temporarily installing new parts, make sure the related parts fit properly.
(C) 2
(C) 5
(C) 6
(C) 3
(C) 3
(C) 2
B-PILLAR REINFORCEMENT
am6xub0000009
