BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–60

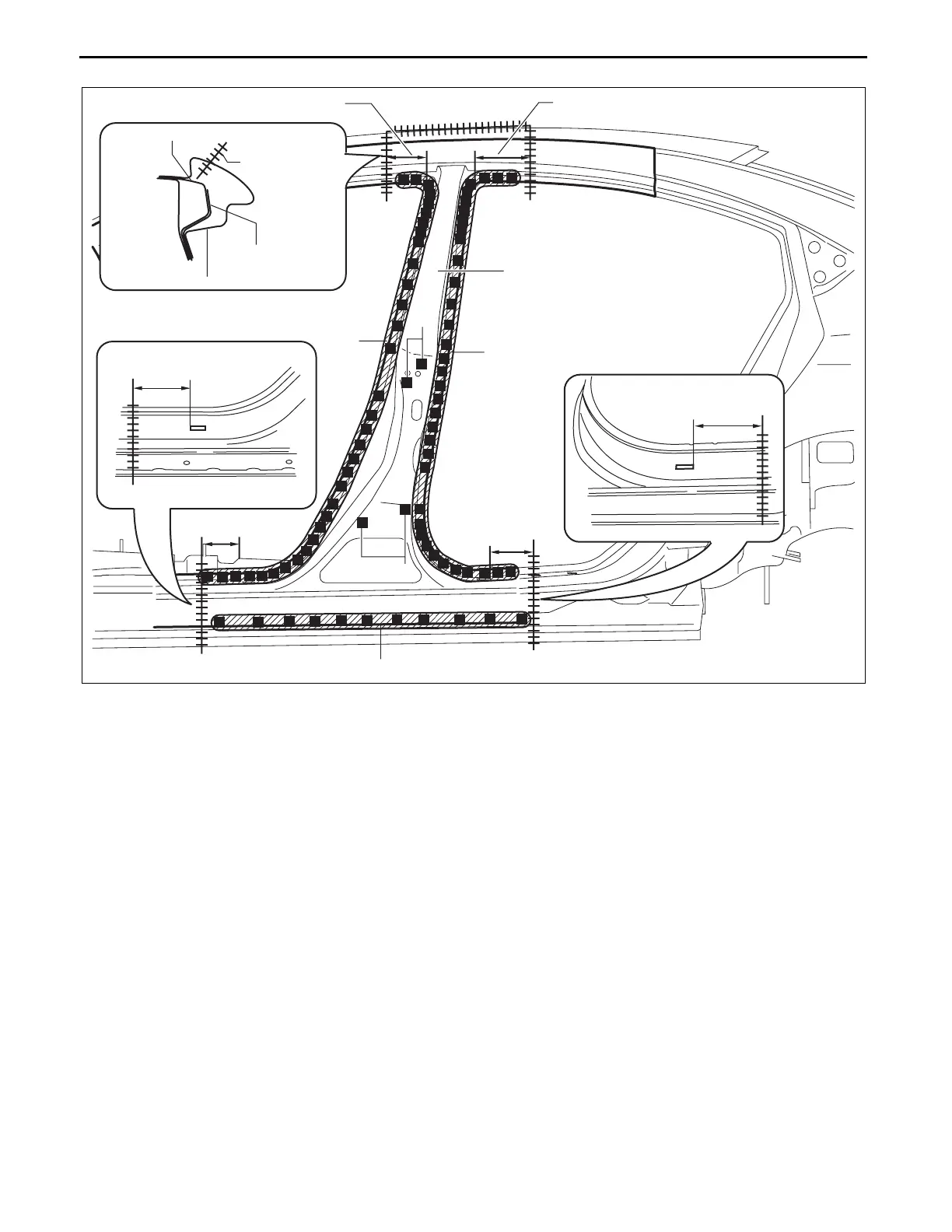

7. Cut-and-join area locations indicated by (D) then plug weld 83 locations indicated (E) shown in the figure.
End Of Sie
BM: SIDE SILL PANEL
(E) 35
(E) 2
(D)
(D)
(E) 33
(D)
(D)
(E)
2
150 mm {5.91 in}
60 mm
{2.4 in}
90 mm
{3.5 in}
110 mm {4.33 in}
(E) 11
ROOF RAIL REINFORCEMENT
CENTER PILLAR (OUTER)
B-PILLAR
REINFORCEMENT
CENTER PILLAR (OUTER)
CUT-AND-JOIN
LOCATION
60 mm
{2.4 in}
90 mm
{3.5 in}
am6xub0000008
