BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–21
09-80B
WHEEL APRON PANEL (FRONT) INSTALLATION [PANEL REPLACEMENT]
id098008741200
Symbol Mark
Installation Procedure
LH
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

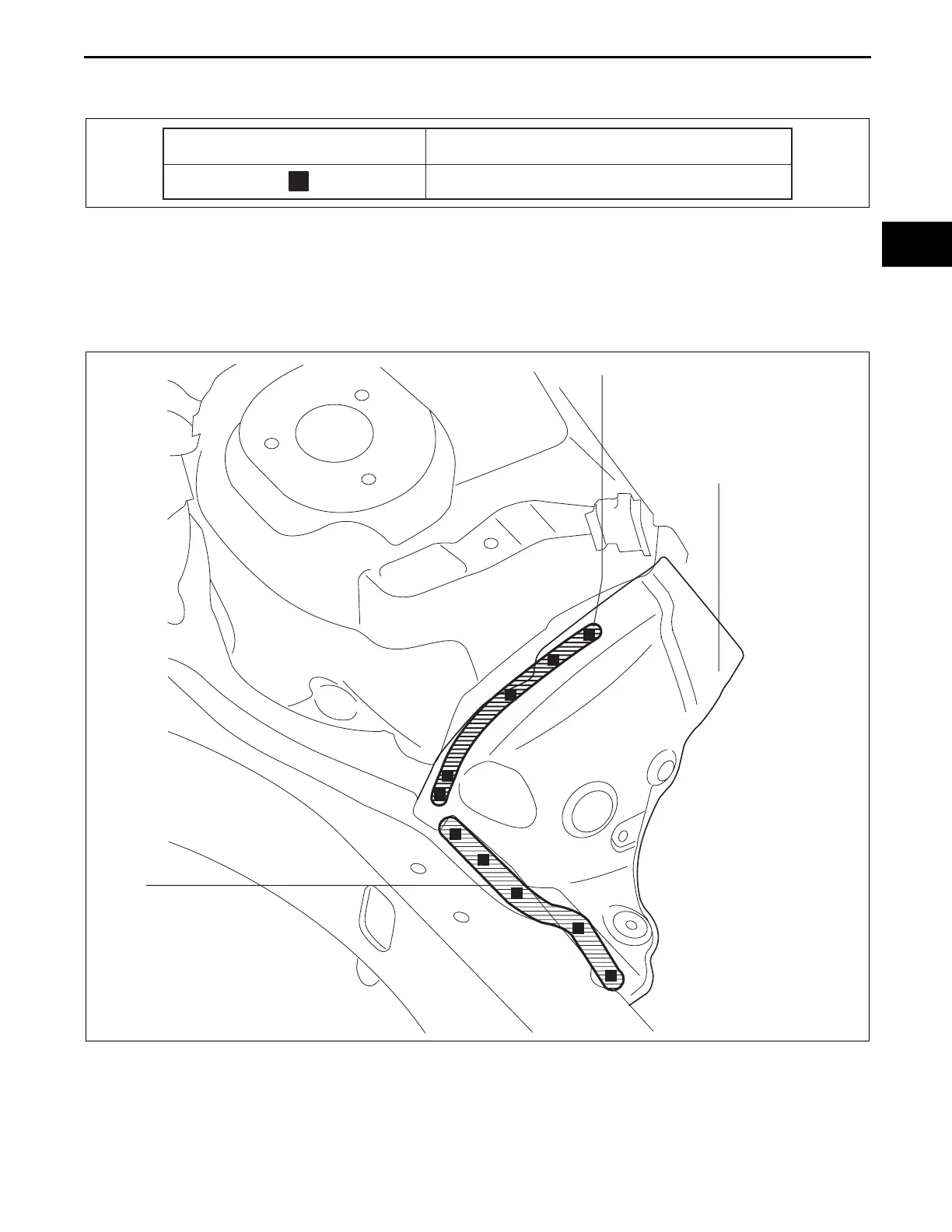

4. Plug weld the 10 locations indicated shown in the figure.
SYMBOL MARK
MEANING
PLUG WELDING (CO
2
ARC WELDING)
am6zzb0000001
5
5
WHEEL APRON PANEL
(FRONT)
am6xub0000002
