BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–46
TORQUE BOX INSTALLATION [PANEL REPLACEMENT]
id098008607200
Symbol Mark
Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

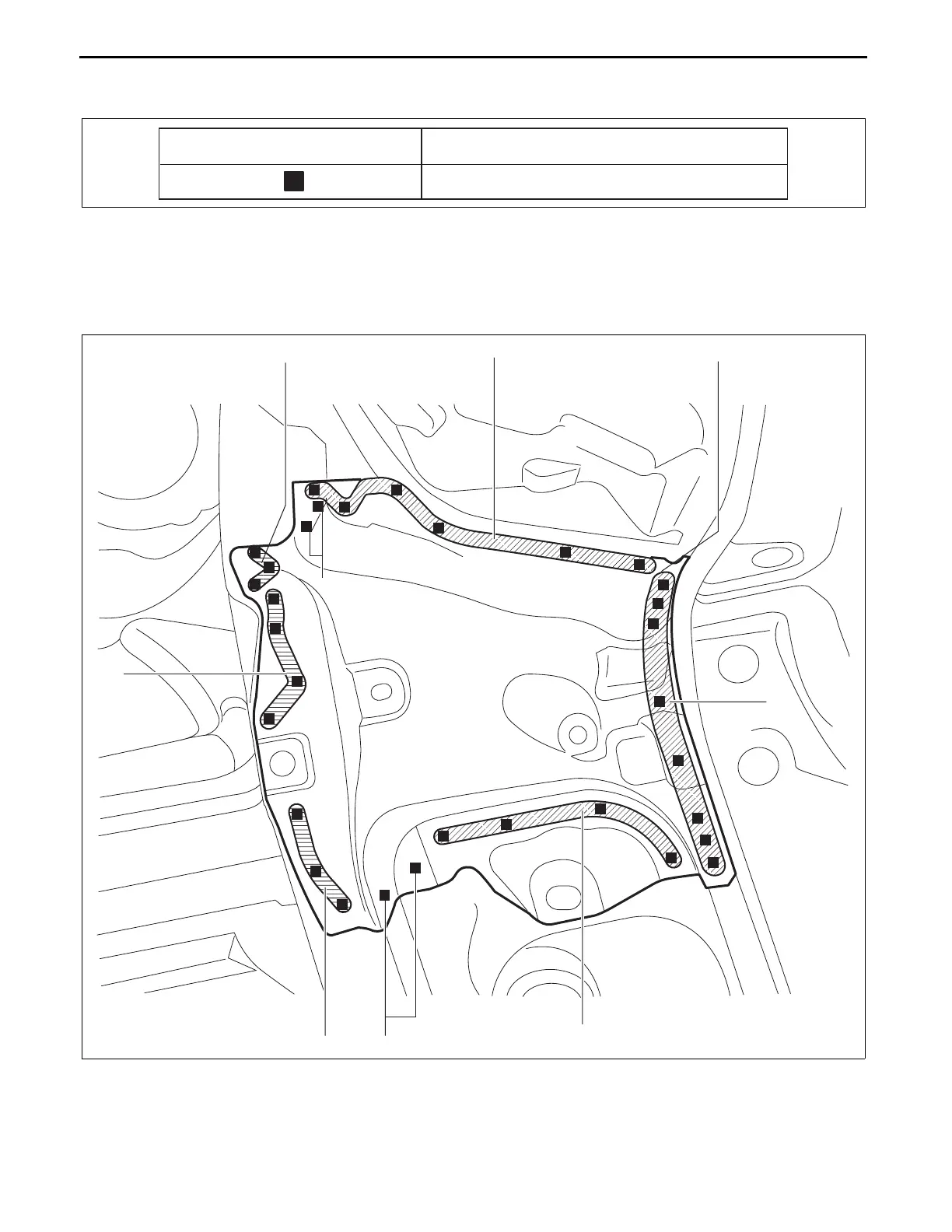

4. Plug weld the 32 locations indicated shown in the figure.
End Of Sie
BM: FRONT PILLAR
SYMBOL MARK
MEANING
PLUG WELDING (CO
2
ARC WELDING)
am6zzb0000002
2
8
4
4
6
3
TORQUE BOX
3
2
am6zzb0000015
