APRON REINFORCEMENT (UPPER) REMOVAL [PANEL REPLACEMENT]
id098008800000
Symbol Mark
Removal Procedure

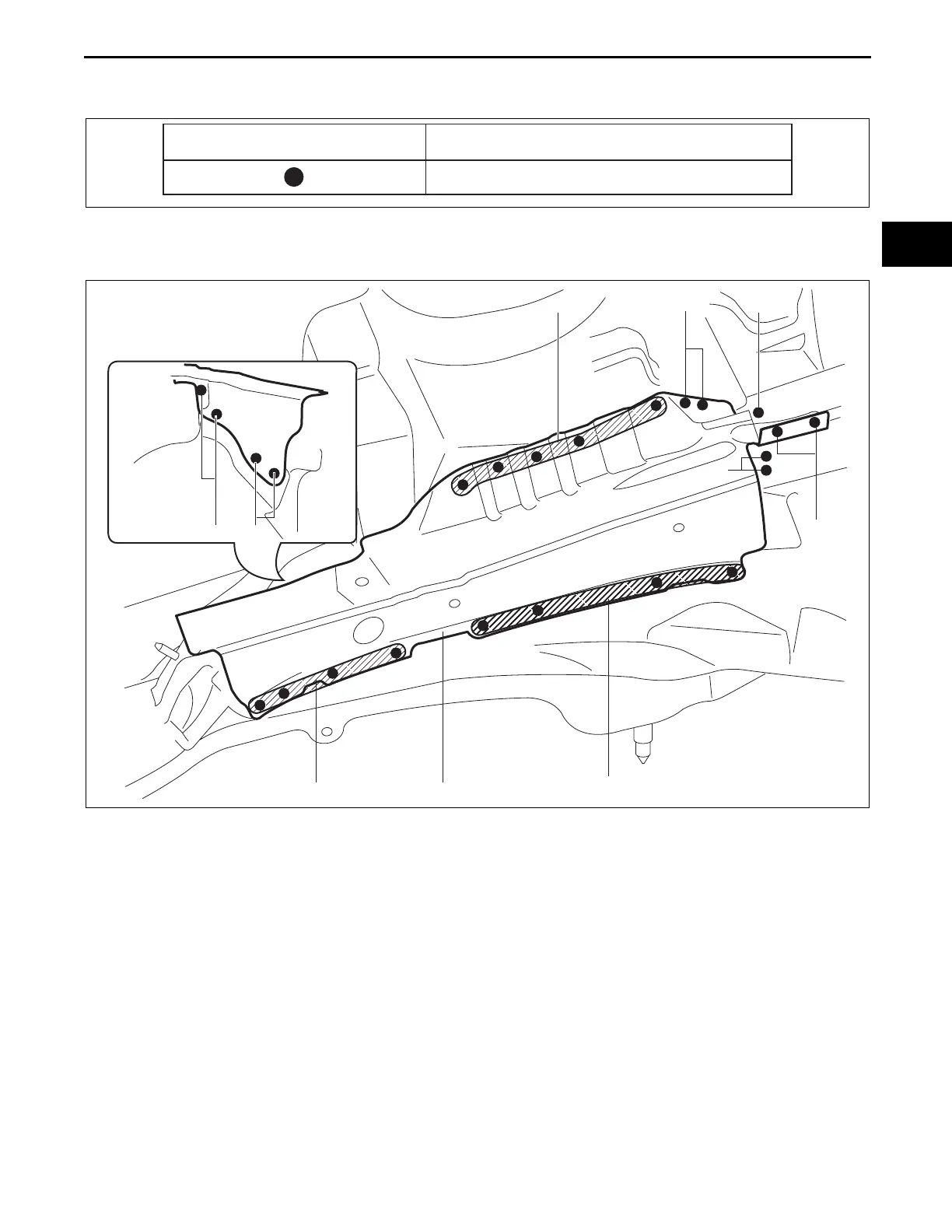

1. Drill the 24 locations indicated shown in the figure.
2. Remove the apron reinforcement (upper).
End Of Sie
SYMBOL MARK
MEANING
SPOT WELDING
am6zzb0000005
2
4
4
2
5
1
22
APRON REINFORCEMENT (UPPER)
