Mazda 6 2009 - Apron Reinforcement (Lower) Removal [Panel Replacement]; Symbol Mark; Removal Procedure

BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–17
09-80B
APRON REINFORCEMENT (LOWER) REMOVAL [PANEL REPLACEMENT]
id098008741300
Symbol Mark
Removal Procedure

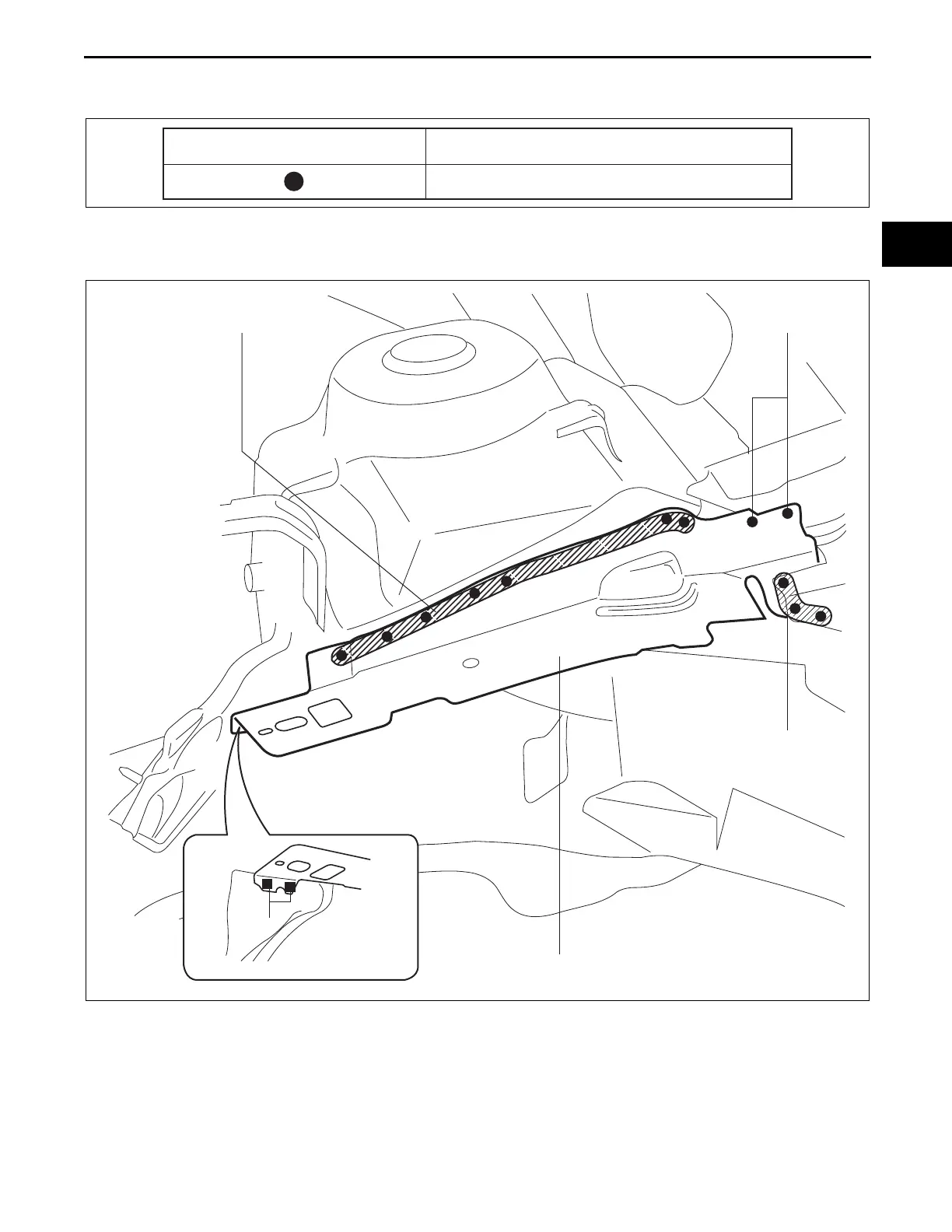

1. Drill the 14 locations indication shown in the figure.
2. Remove the apron reinforcement (lower).
End Of Sie
SYMBOL MARK
MEANING
SPOT WELDING
am6zzb0000005
2
APRON REINFORCEMENT
(LOWER)
7
3
2
am6xub0000002
