Mazda 6 2009 - Side Sill Panel Removal [Panel Replacement]; Symbol Mark; Removal Procedure

BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–61
09-80B
SIDE SILL PANEL REMOVAL [PANEL REPLACEMENT]
id098008743700
Symbol Mark
Removal Procedure

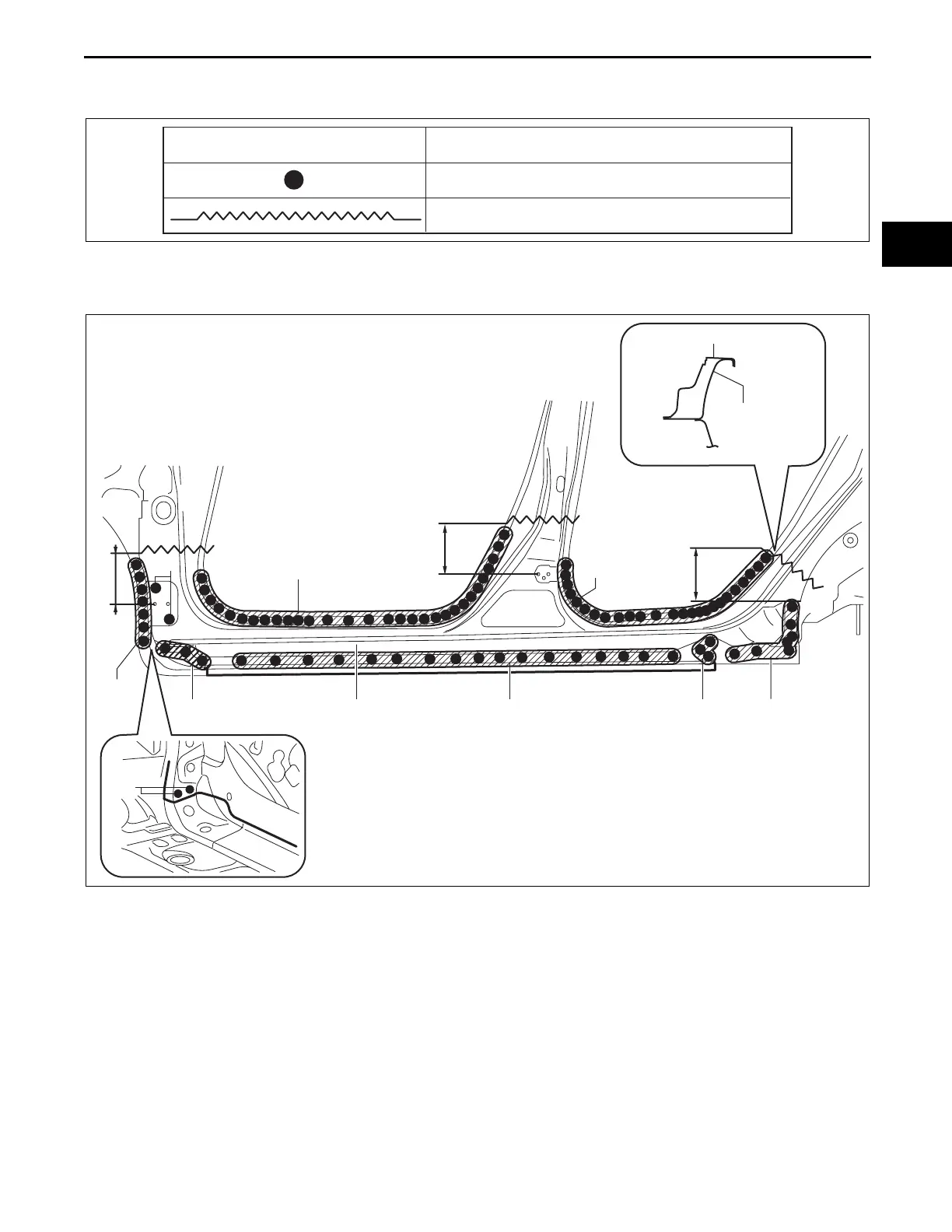

1. Rough cut area locations indicated by (A) then drill the 95 locations indicated by (B) shown in the figure.
Caution
x During rough cutting, be careful not to damage the wheel house (inner).
2. Remove the side frame (outer).
SYMBOL MARK
MEANING
SPOT WELDING
ROUGH CUT LOCATION
am2zzb0000009
SIDE FRAME (OUTER)
(B) 25
(B) 7(B) 3
(B) 3
(B) 7
(B) 29
(B) 17
(A)
(A)
(A)
100 mm {3.94 in}
100 mm
{3.94 in}
117 mm
{4.61 in}
(B) 2
(B) 2
SIDE FRAME (OUTER)
WHEEL HOUSE
(INNER)
am6zzb0000008
