BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–6
SHROUD SIDE PANEL INSTALLATION [PANEL REPLACEMENT]
id098008602800
Symbol Mark
Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

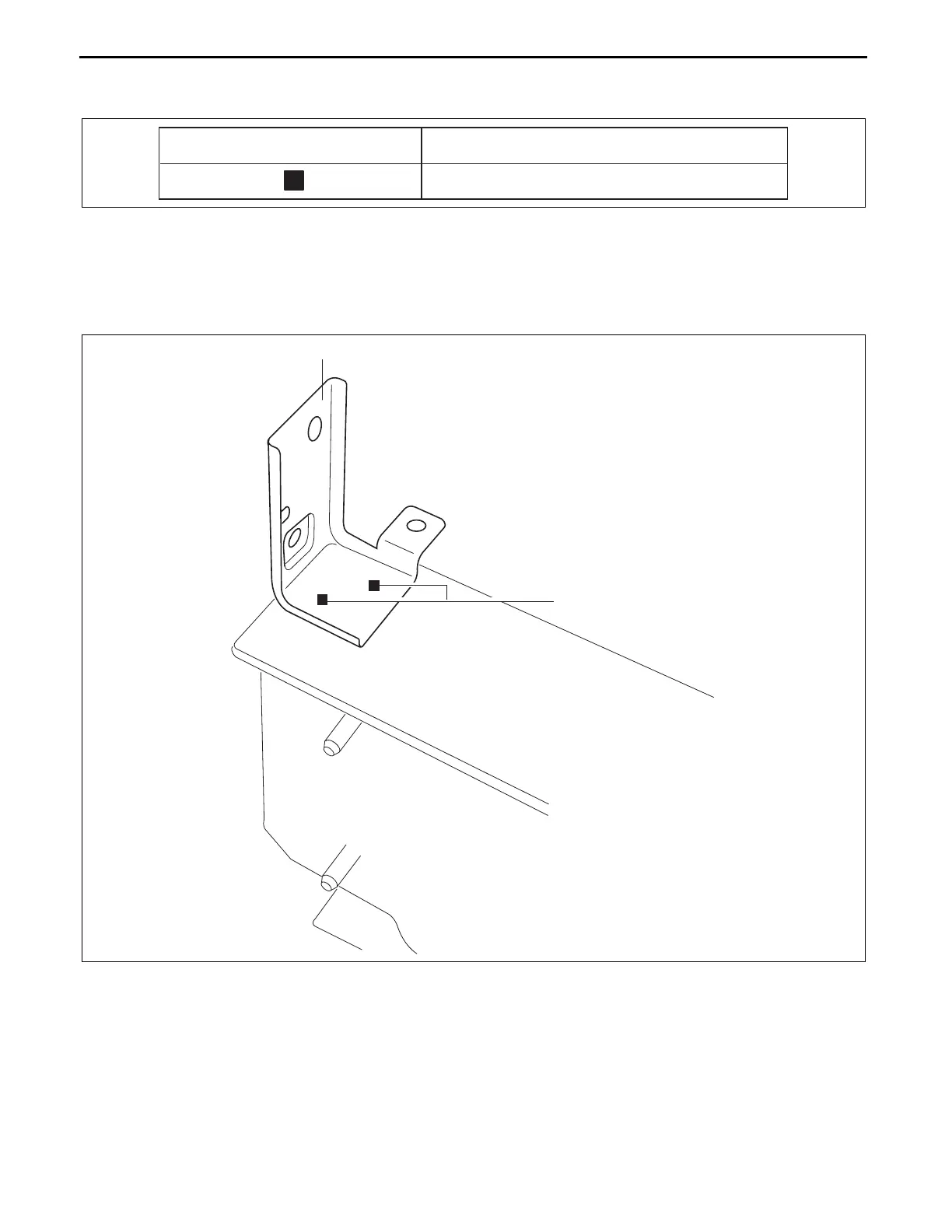

4. Plug weld the 2 locations indicated shown in the figure.
End Of Sie
SYMBOL MARK
MEANING
PLUG WELDING (CO
2
ARC WELDING)
am6zzb0000001
2
SHROUD SIDE PANEL
am6xub0000001
