Mazda 6 2009 - Wheel Apron Panel (Front) Removal [Panel Replacement]; Symbol Mark; Removal Procedure

BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–19
09-80B
WHEEL APRON PANEL (FRONT) REMOVAL [PANEL REPLACEMENT]
id098008741100
Symbol Mark
Removal Procedure
LH

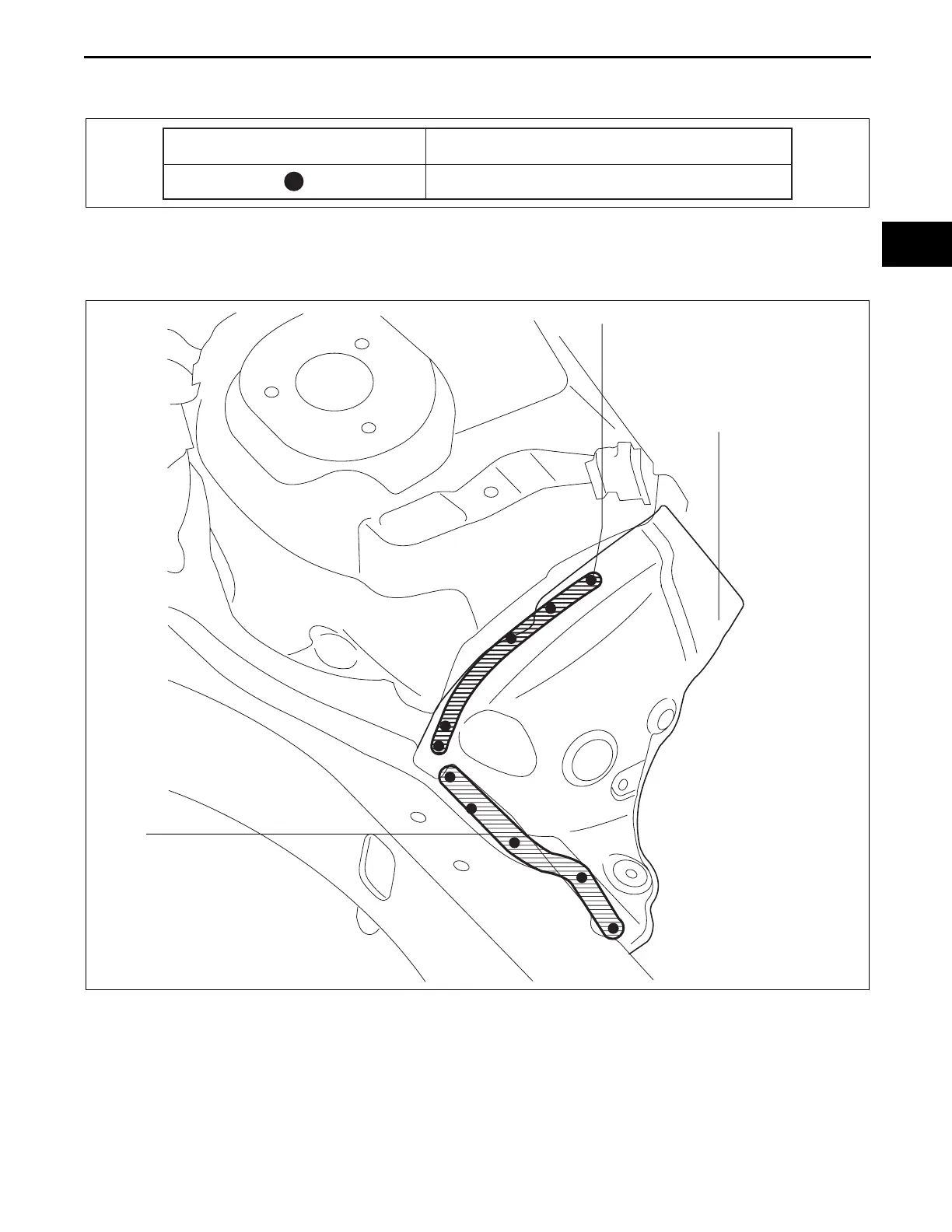

1. Drill the 10 locations indicated shown in the figure.
2. Remove the wheel apron panel (front).
SYMBOL MARK
MEANING
SPOT WELDING
am6zzb0000001
5
5
WHEEL APRON PANEL
(FRONT)
am6xub0000002
