BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–57
09-80B

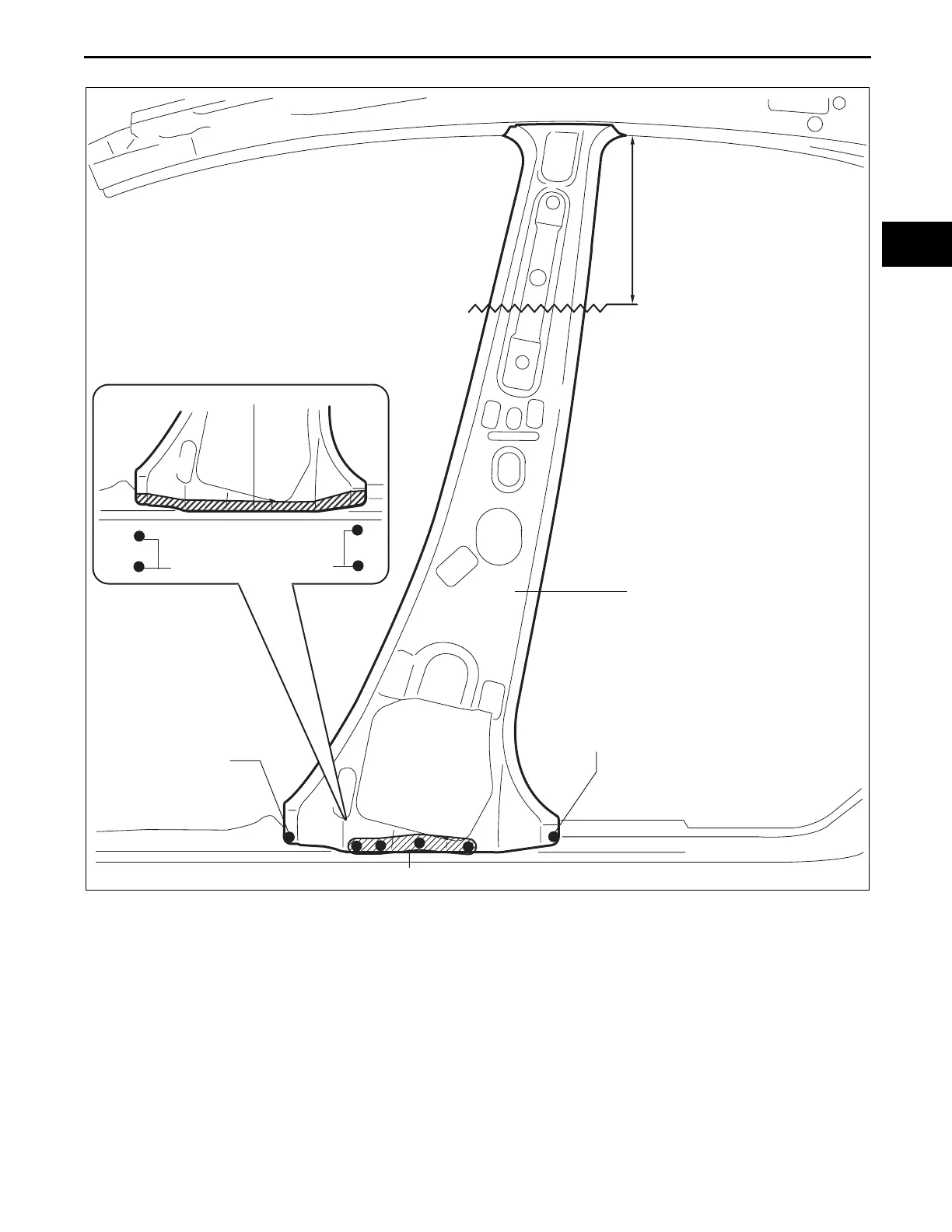

5. Rough cut area locations indicated by (D) then drill the 10 locations indicated by (E) shown in the figure.
6. Remove the weld bond using a chisel and remove the B-pillar (inner) shown in the figure.
7. Remove the B-pillar (inner).
End Of Sie
(D)
(E) 1
(E) 1
(E) 4
220 mm {8.66 in}
B-PILLAR (INNER)
WELD BOND APPLICATION AREA
(E) 2
(E) 2
am6xub0000007
