BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–65
09-80B

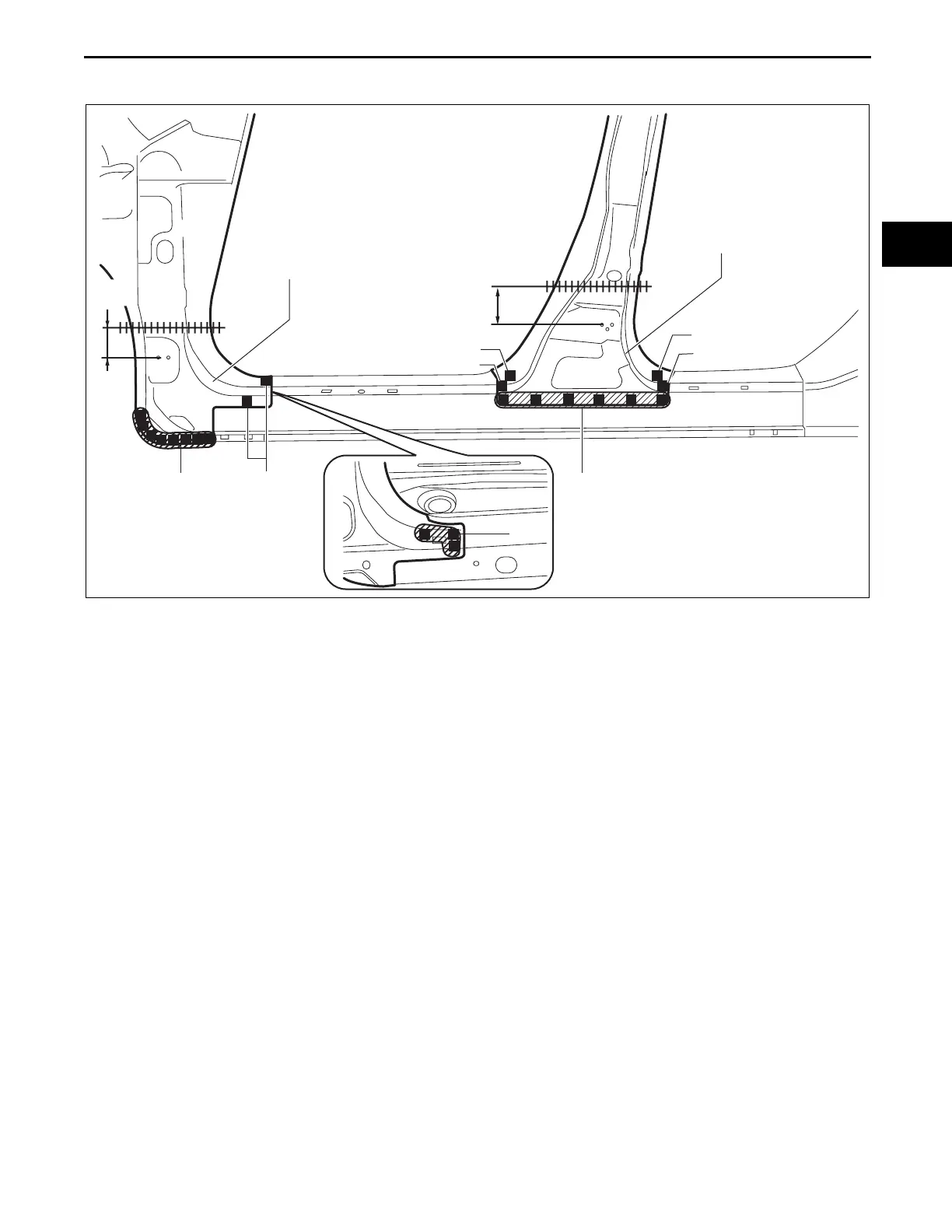

6. Cut-and-join area locations indicated by (B) then plug weld the 23 locations indicated by (C) shown in the
figure.
7. Install the hinge reinforcement and B-pillar reinforcement.
HINGE REINFORCEMENT
B-PILLAR REINFORCEMENT
(B)
(B)
90 mm {3.5 in}
97 mm
{3.8 in}
(C) 8 (C) 2
(C) 6
(C) 1
(C) 1
(C) 3
(C) 1
(C) 1
am6zzb0000025
