BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–24
RH

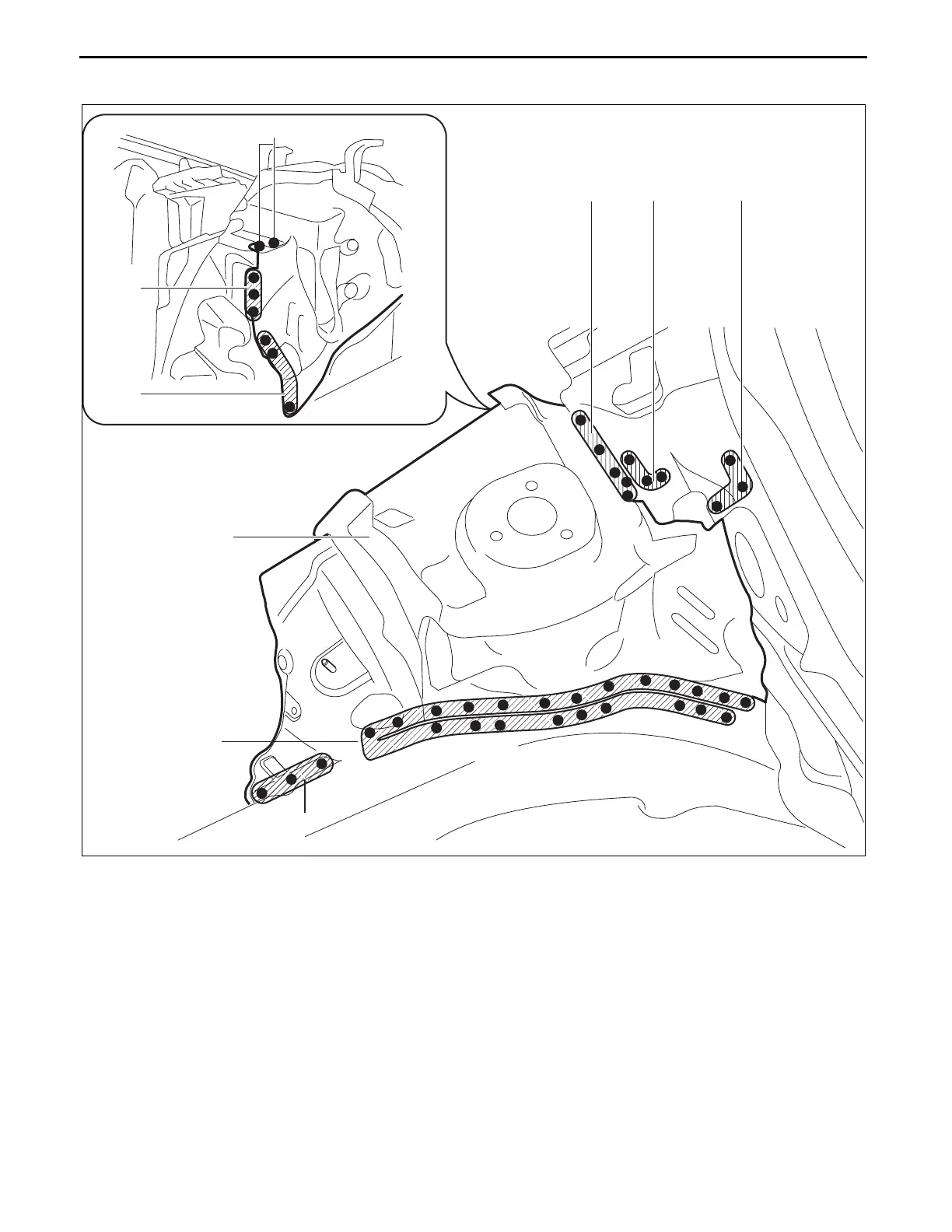

1. Drill the 36 locations indicated by (A), drill the 8 locations indicated by (B) shown in the figure.
Note
x Drill the 8 locations indicated by (B) from the front wheel housing.
2. Remove the wheel apron component.
End Of Sie
(B)3
(A)22
(A)5
(A)3
(B)2
(B)3
(A)3
WHEEL APRON
COMPONENT
(A)3
am6xub0000003
