BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–26
RH
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

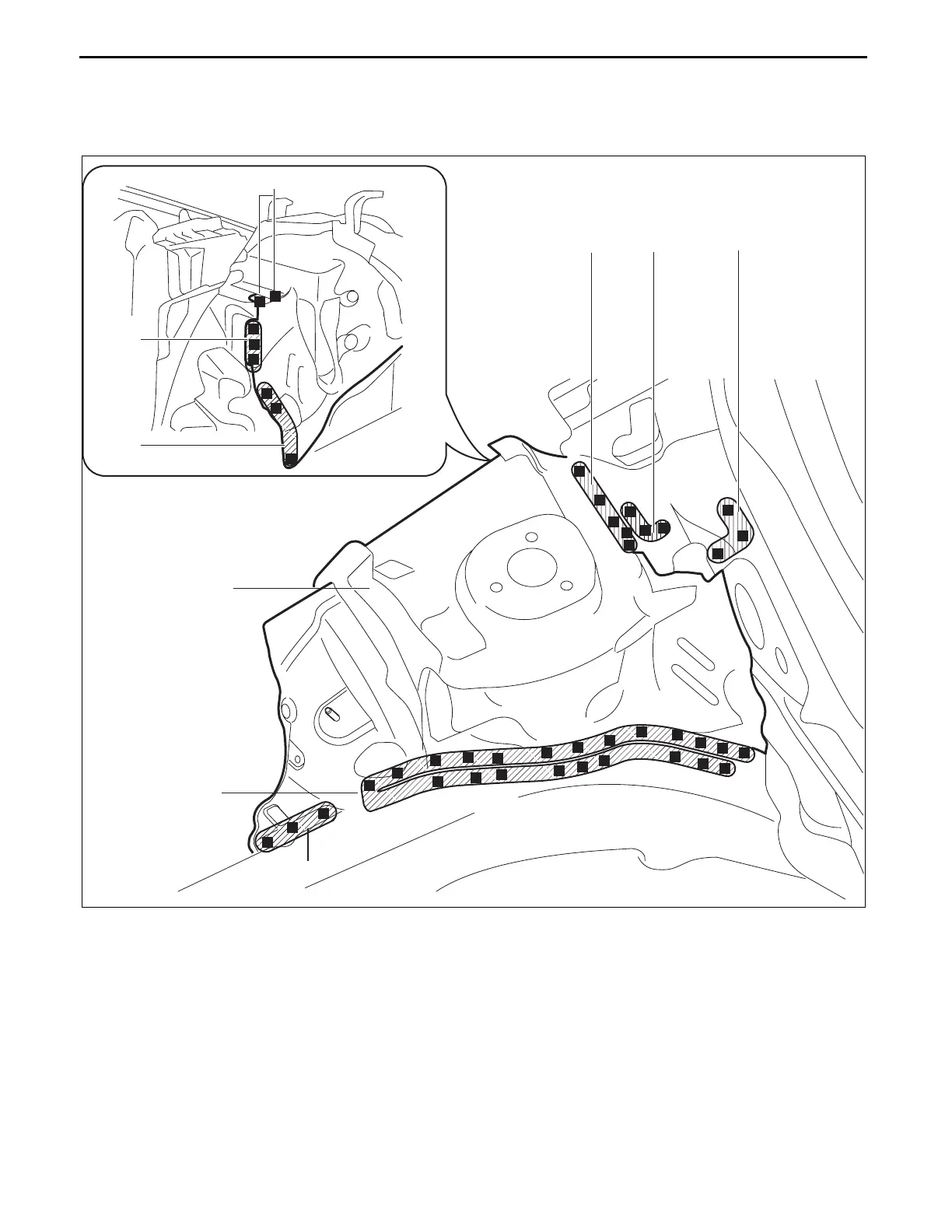

4. Plug weld the 36 locations indicated by (A), drill the 8 locations indicated by (B) shown in the figure.
Note
x Plug weld the 8 locations indicated by (B) from the front wheel housing.
End Of Sie
BM: FRONT SIDE FRA ME
(B)3
WHEEL APRON
COMPONENT
(A)22
(A)5
(A)3
(B)2
(B)3
(A)3
(A)3
am6xub0000003
