BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–33
09-80B
(B)7
(B)8
(B)3
30mm

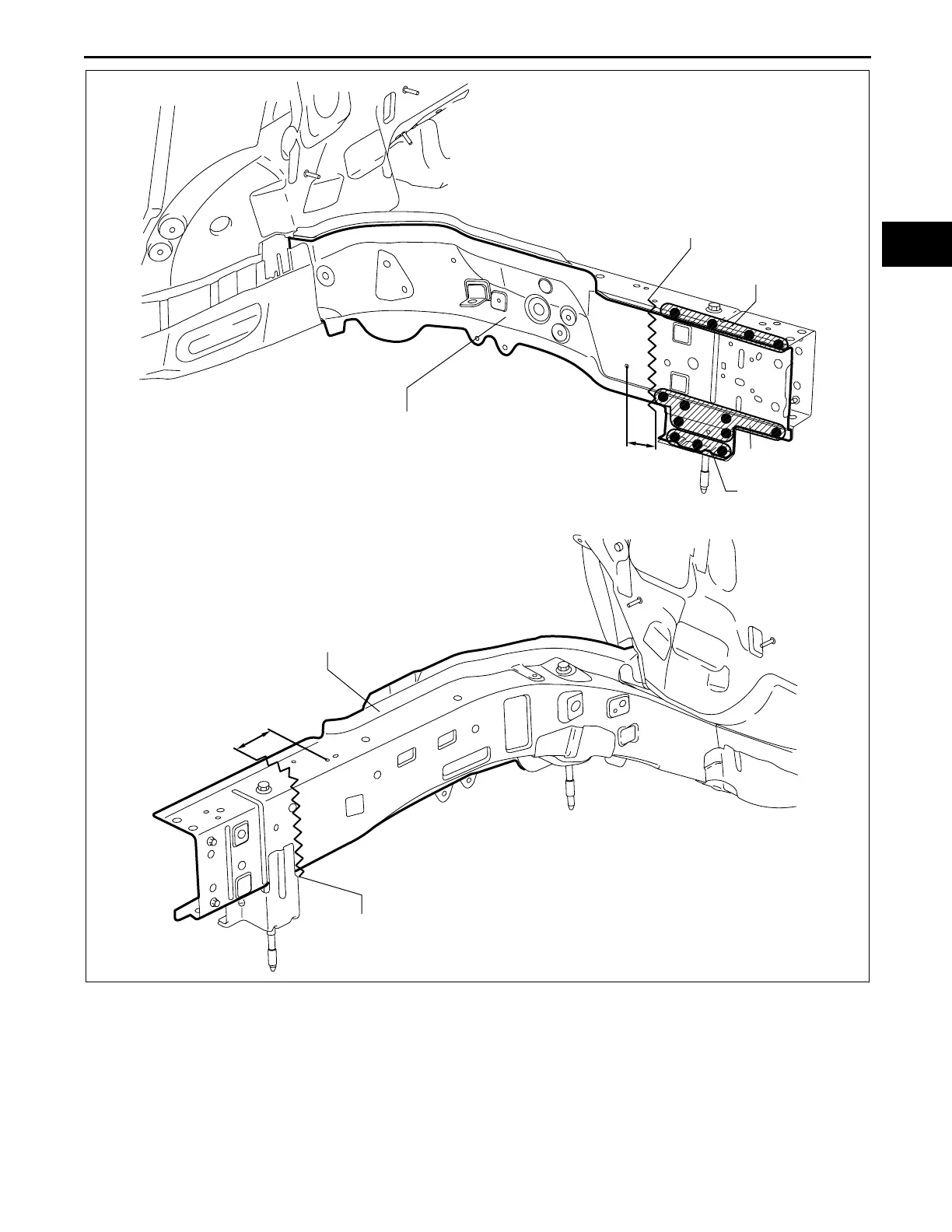

FRONT SIDE FRAME (OUTER, RH)
{1.18in}
ROUGH CUT AND
CUT
-AND-JOIN LOCA
TION
(A)
85mm
FRONT SIDE FRAME (INNER, RH)
ROUGH CUT AND
CUT
-AND-JOIN LOCA
TION
(A)
{3.35in}
am6xub0000004
