Page 15
Functional Principle, Technical Data
optoNCDT 1402
Supply 11 ... 30 VDC, typical 24 VDC / 50 mA
Controller integral signal processor
Electromagnetic
compatibility (EMC)
EN 61326-1: 2006-10 / EN 55011: 2007-11 Class B (Interface emission)
EN 61326-1: 2006-10 / EN 61000-6-2: 2006-03 (Interference resistance)
The specified data apply to a white, diffuse reflecting surface (Reference: Ceramic).
1) With averaging factor 64
FSO = Full Scale Output
FSO = Full Scale Output
SMR = Start of measuring range MMR = Midrange EMR = End of measuring range
ILD1402-250VT: 20 g, especially shock and vibration-resistant design for use on motor vehicles

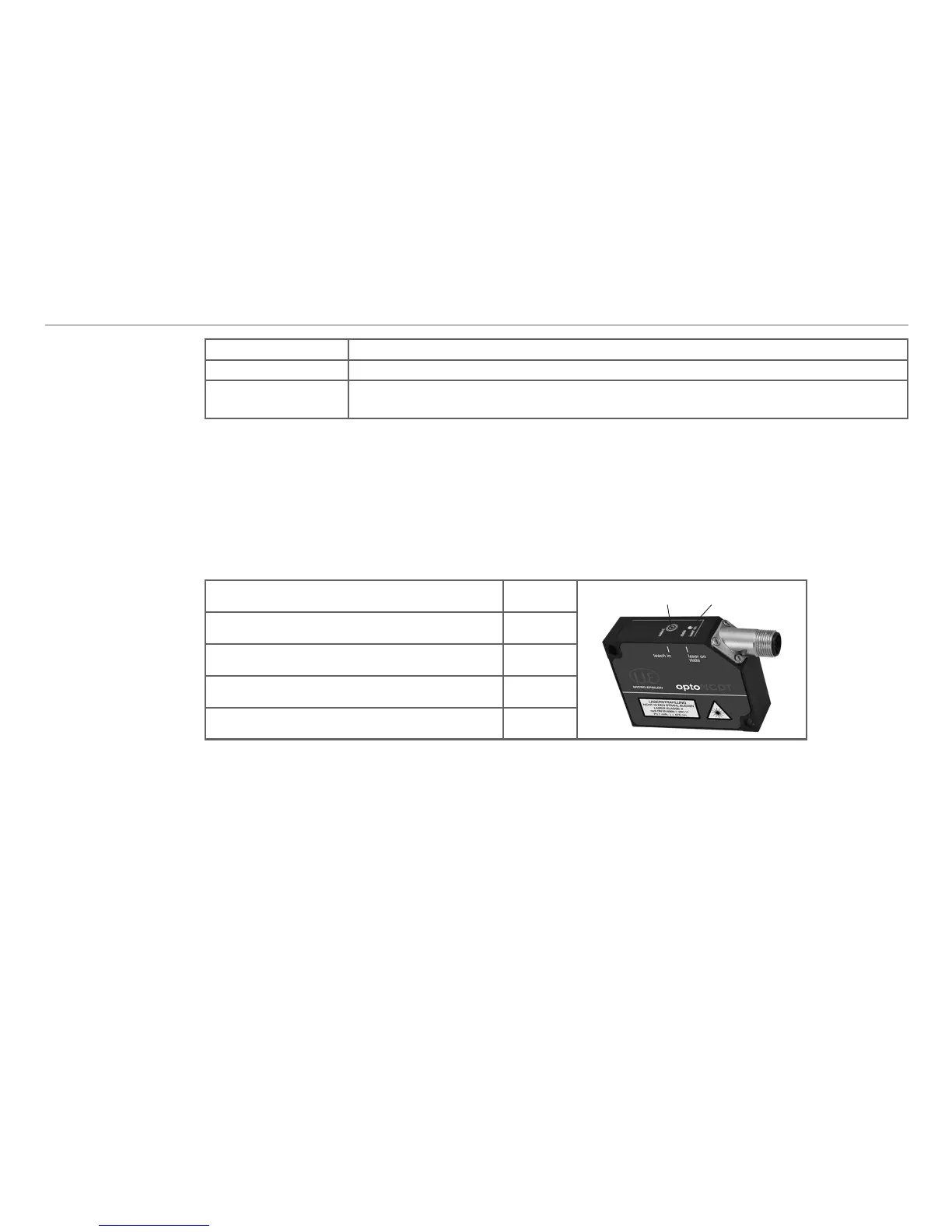

Control and Indicator Elements3.4
LED State Color
Measuring object within measurement range green
Midrange yellow
Error - e.g. poor target or out of range red
Laser turned off off
The touch key “select” is used to scale the sensor. By factory default this key is only active for the first 5
minutes after the power up. After that it will be automatically locked. Via the software tool the auto lock feature
can be disabled. With the select key you spread the analog output over a part of the nominal measuring
range.
