Delivery
optoNCDT 1402
Delivery 4.
Scope of Delivery4.1
1 Sensor optoNCDT1402
1 Assembly instructions
5 sealing screws for connector
Optional accessory, packed separately:
1 PC1402-x/I high flex interface und supply cable for current output, one end of the cable has a molded -
M12 female connector, the other end has free leads with ferrules.
1 PC1402-x/U high flex interface und supply cable for voltage output (250 Ohm load, U -
out
= 1 … 5 V), one
end of the cable has a molded M12 female connector, the other end has free leads with ferrules.
See Chap. 16 for a full list of all available cables.

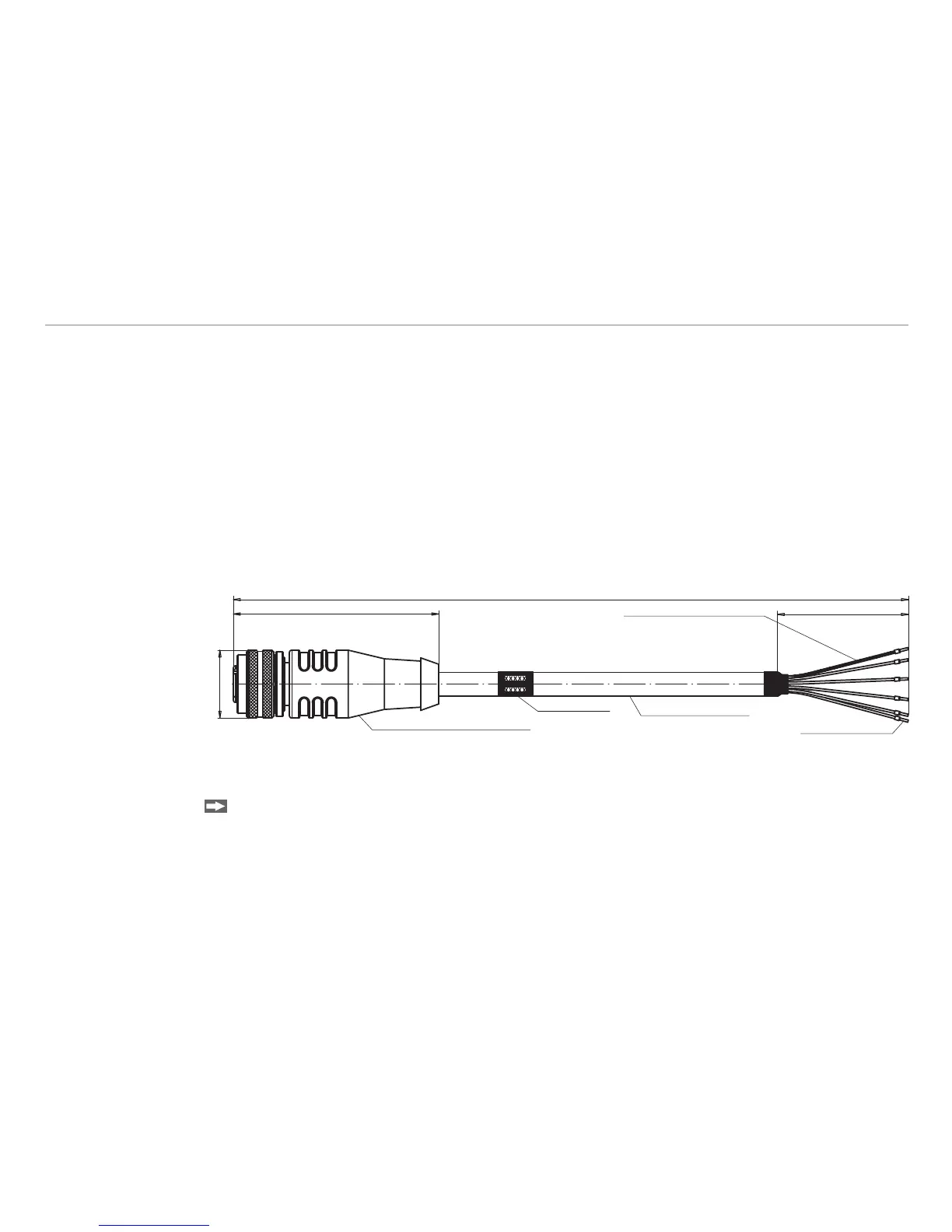

M12x1 coupling, screened
with vibration protection,
12-pin
Label,
2 lines printed
Cable:
Li12YC11Y-OB
5x2x0.25 mm², screened
outer casing: PUR
color: grey
Ferrules
wire insulation: TPE
Twisted screening,
covered with head shrink
tube, ferrule
45.4
50
±2
ø15
X
Check for completeness and shipping damage immediately after unpacking. In case of damage or miss-mpleteness and shipping damage immediately after unpacking. In case of damage or miss-
ing parts, please contact the manufacturer or supplier.
Storage 4.2
Storage temperature: -20 up to +70 °C (-4 to +158 °F)
Humidity : 5 - 95 % (no condensation)
