Page 71
Instructions for Operating
optoNCDT 1402
Y-axis
Angle
X-axis
tilting < triangulation angle
Angle
laser on
state
teach in
optoNCDT
nach DIN EN 60825-1: 2007
P x1 mW; O = 670 nm
LASERSTRAHLUNG
NICHT IN DEN STRAHL BLICKEN
LASER KLASSE 2
Angle X-axis % Y-axis %
±5 ° typ. 0.12 typ. 0.12
±15 ° typ. 0.2 typ. 0.2
±30 ° typ. 0.5 typ. 0.5

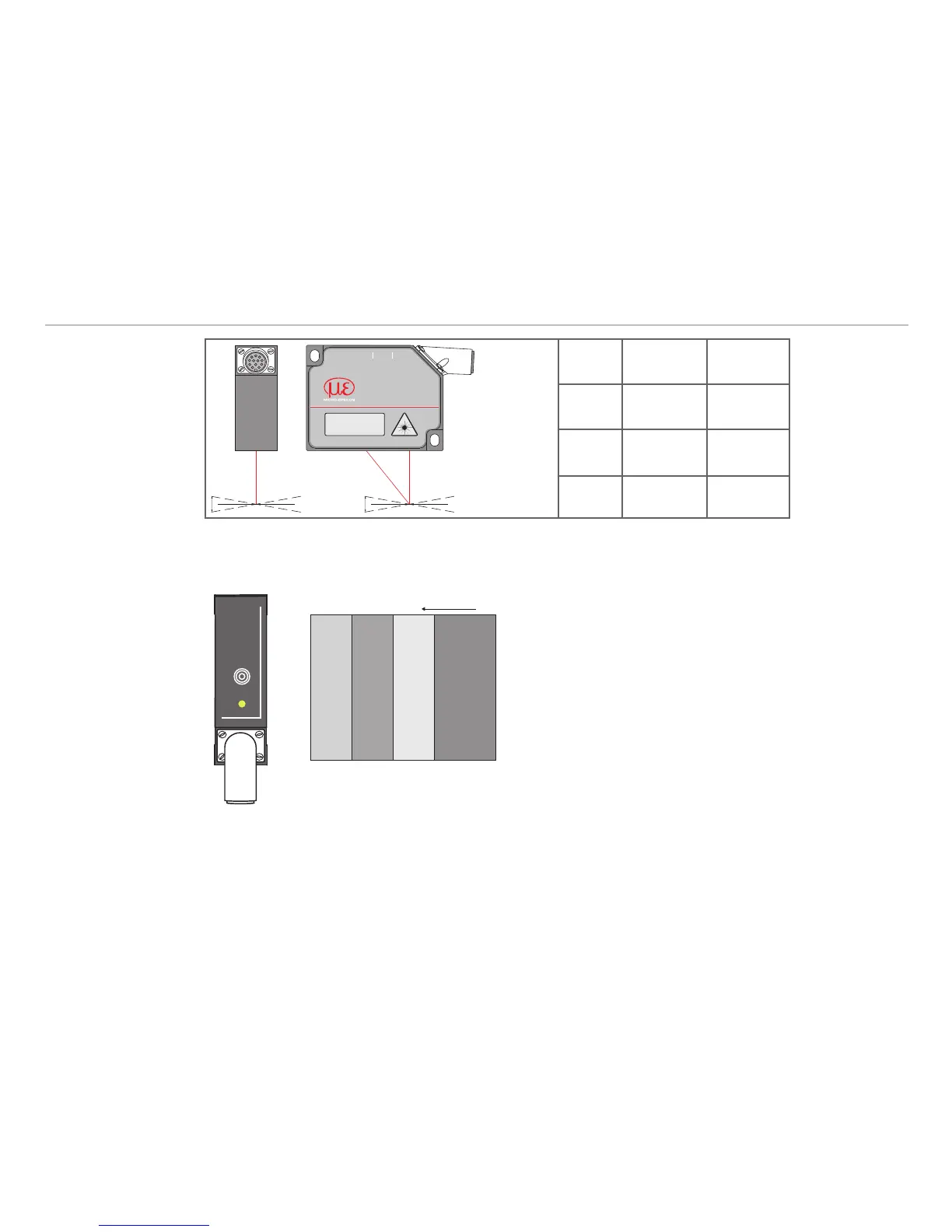

Measurement errors through tilting with diffuse reflectionFig. 22:
Optimizing the Measuring Accuracy9.3
Color strips Direction of motion
Grinding or rolling marks
select
sate
laser on
In case of rolled or polished metals that are
moved past the sensor the sensor plane must
be arranged in the direction of the rolling or
grinding marks. The same arrangement must be
used for color strips (Fig. 23).
Sensor arrangement in case of ground Fig. 23:
or striped surfaces
