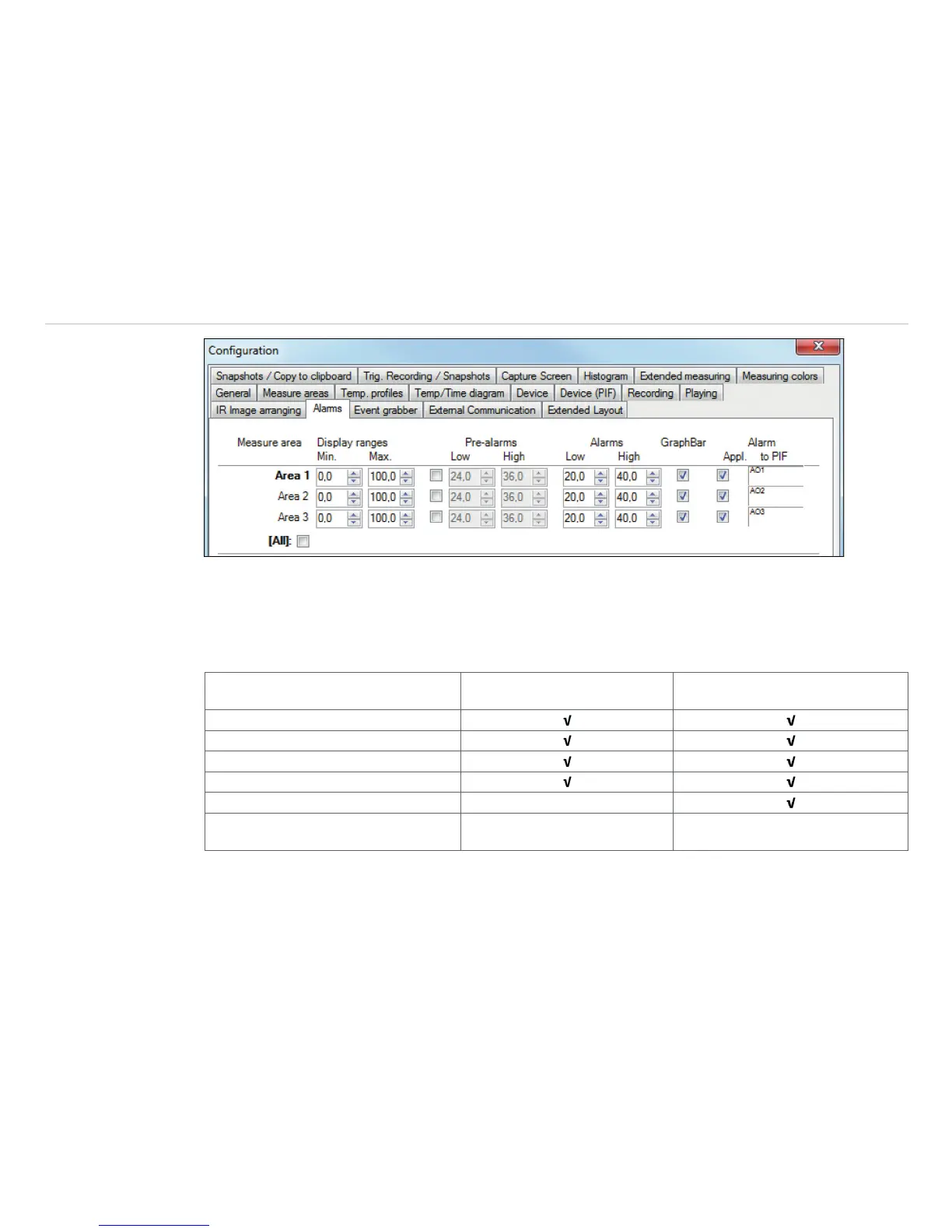

If you activate the function Alarm on an analog output you need to assign also in the Alarms tab the desired
measurement area to the desired PIF output.
The industrial PIF has a maximum of three analog outputs. To use more outputs, you can cascade up to three
PIFs, allowing you to use up to 9 analog or alarm outputs in total.
For more information on the settings for alarms, see Chap. 6.8.
Controlled conditions on camera
and software
Standard process interface
TM-PIF-TIM8
Industrial process interface
TM-PIFCBx-TIM8
Interruption USB cable to camera
Interruption data cable camera - PIF
Interruption power supply - PIF
Shut-down of TIM Connect software
Crash of TIM Connect software
1
-
Fail-safe output 0 V at analog output (AO) Open contact (Fail-safe relay)/
green LED off
