Microm TX3 Series - Figure 15 15 Touch Screen Surface Mount Front Dimensions (Inches)

26 (93) TX3 Touch Screen Installation Manual Version 3.4
Copyright 2015 LT-996
Enclosure Installation

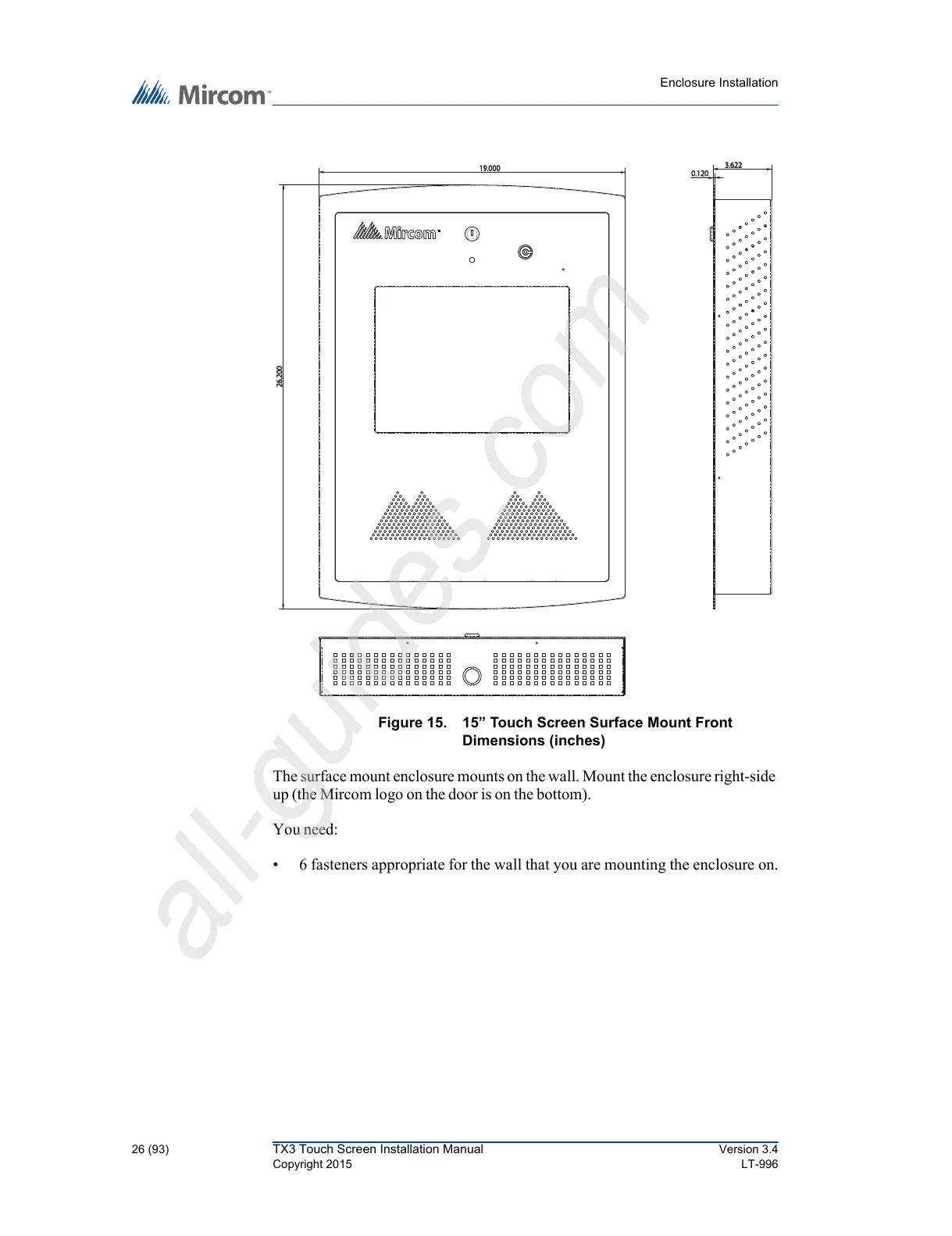

Figure 15. 15” Touch Screen Surface Mount Front
Dimensions (inches)
The surface mount enclosure mounts on the wall. Mount the enclosure right-side
up (the Mircom logo on the door is on the bottom).
You need:
• 6 fasteners appropriate for the wall that you are mounting the enclosure on.
26.200
26.200
19.000
19.000
3.622
3.622
0.120
0.120
