Microm TX3 Series - Figure 23 22 Touch Screen Surface Mount Dimensions (Inches)

Enclosure Installation
Version 3.4 TX3 Touch Screen Installation Manual 37 (93)
LT-996 Copyright 2015

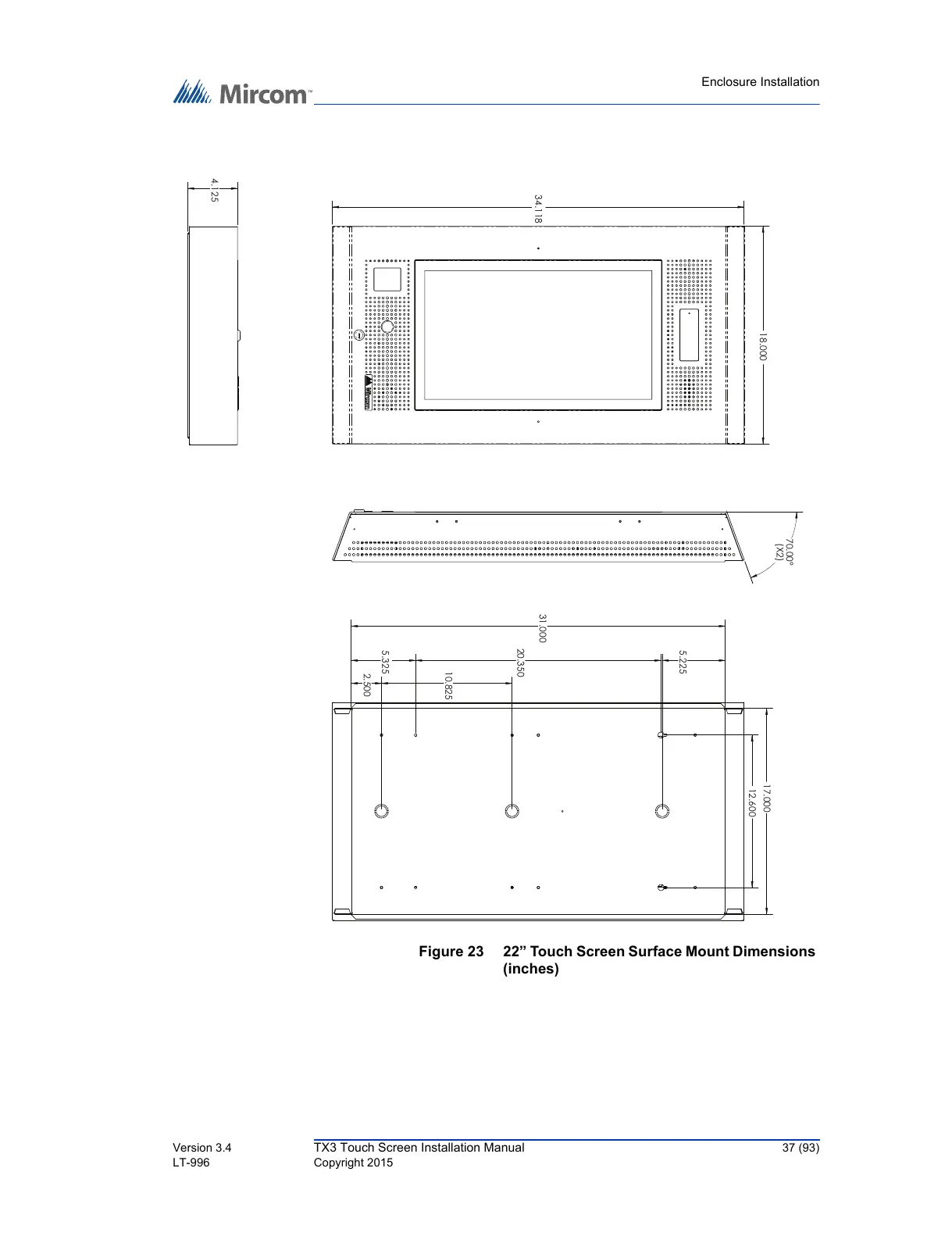

Figure 23 22” Touch Screen Surface Mount Dimensions
(inches)
34.118
18.000
70.00°
(X2)
17.000
31.000
12.600
20.350
2.500
5.325
10.825
5.225
4.125
